SIMATIC IPC647E
Operating Instructions, 11/2018, A5E45589180-AA
155
Dimension drawings
9
9.1 Dimension drawing of the device
Note
IEC 60297-3-100
The system meets the requirements fo
r 2U according to IEC 60297-3-100.

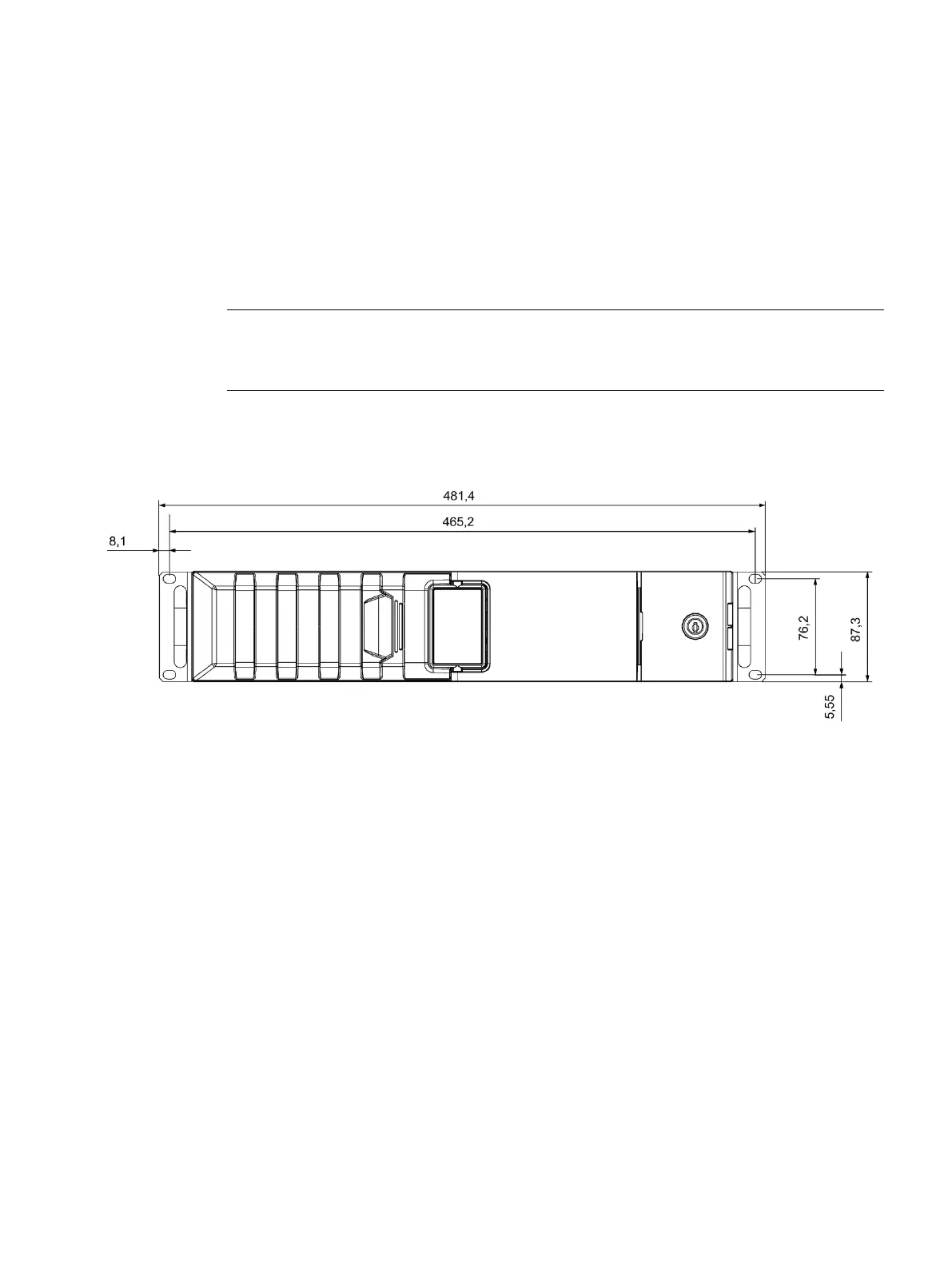

Front view and top view
All dimensions in mm
