6.6.3 Replacing M.2 NVMe SSD (optional)
Note
An M.2 NVMe SSD cannot be operating in a RAID
-System.
Requirement
Note
Observe ESD guidelines
Observe the ESD guidelines.
● M.2 NVMe SSDs with a length of up to 110 mm including thermal pad
● Phillips screwdriver P1
● Screwdriver T10
● The bus frame has been removed Removing/installing the bus frame (Page 87)
● The bus board has been removed
Procedure

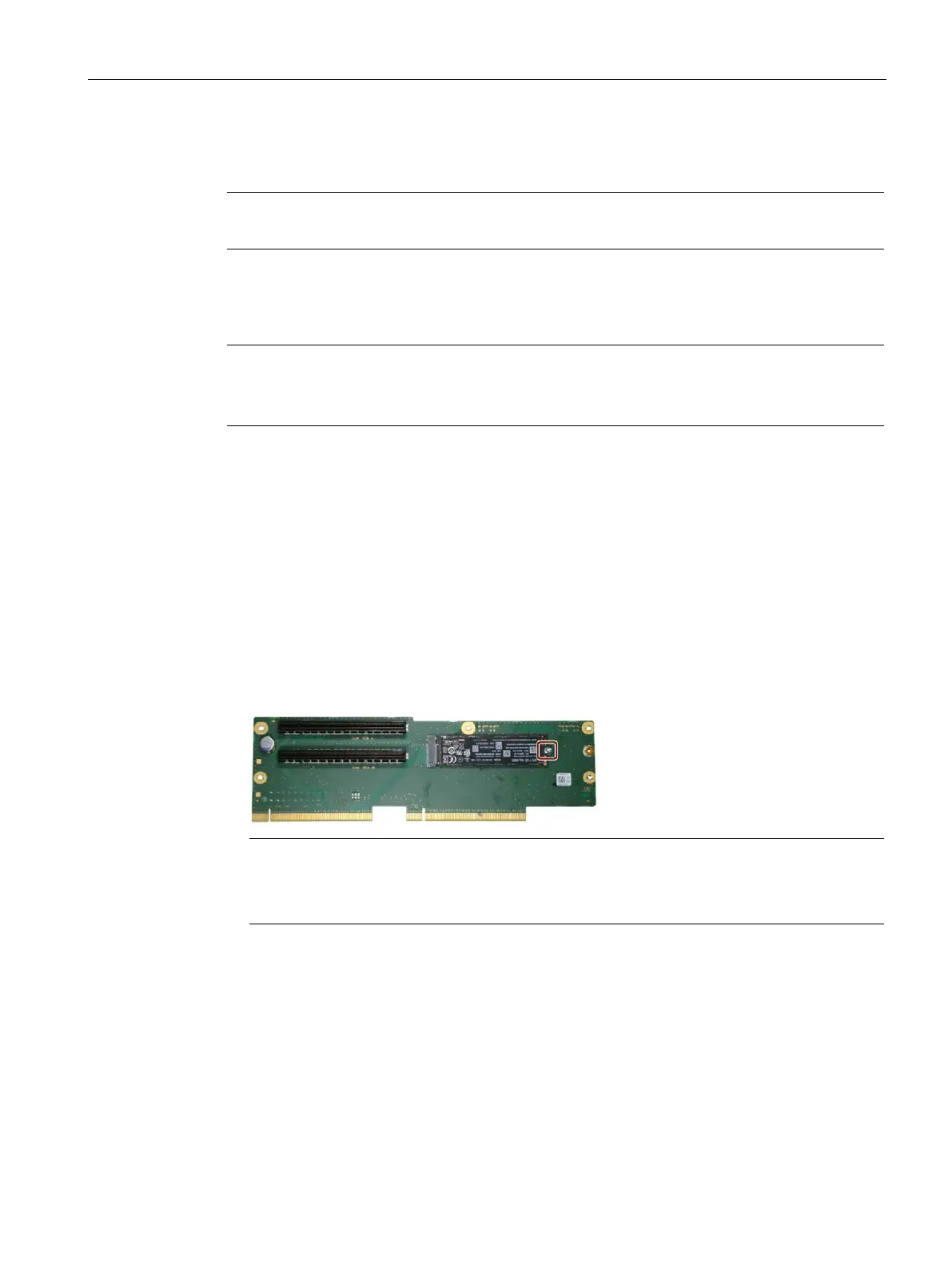

1. Place the bus board on a suitable surface so that it lies flat.
2. Remove the marked screws and the spacer.
Note
The position of the spacer varies depending on the size of the M.2 NVMe SSD.
the longest M.2 NVMe SSD is installed fixed.
