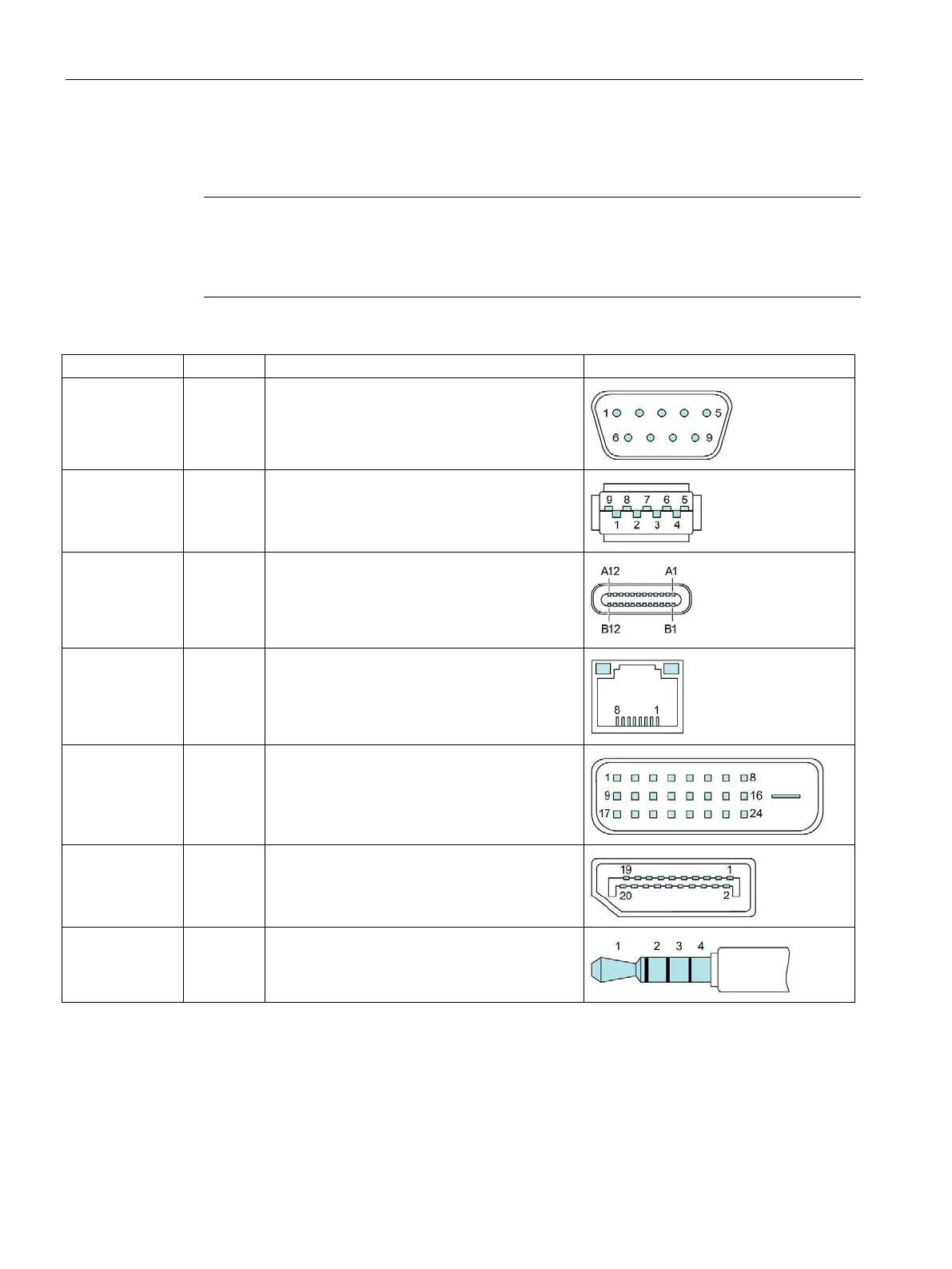

A.4 External interfaces
SIMATIC IPC647E
178 Operating Instructions, 11/2018, A5E45589180-AA
A.4 External interfaces
Note
Interface specification
The data of all external interfaces listed below correspond
to the respective interface
specifications and the intended use.
Interface
Connector
Description
Assignment
COM X30, X31 9-pin standard plug
(± 12 V)
USB 3.1 Type A X60, X62,
X64, X65
USB3 Port 0, 1; USB2 Port 0, 1 interface side
(3.3 V; 900 mA; up to 10 Gbps)
USB 3.1 Type C X61, X63 USB3 Port 0, 1; USB2 Port 0, 1 interface side
(5 V; 1.5 A to 3.0 A; up to 10 Gbps)
Ethernet 1, 2 and
3
X4, X2, X3 RJ45
(up to 1 Gbps)
DVI-D X70 24-pin DVI-D female connector
(3.3 V; 500 mA)
DPP X71, X72 20-pin DisplayPort connector
Audio X90 (bot-
tom)
4-pin 3.5 mm UAJ jack
