Product description
1.4 External design of the device
SIMATIC IPC647E
26 Operating Instructions, 11/2018, A5E45589180-AA

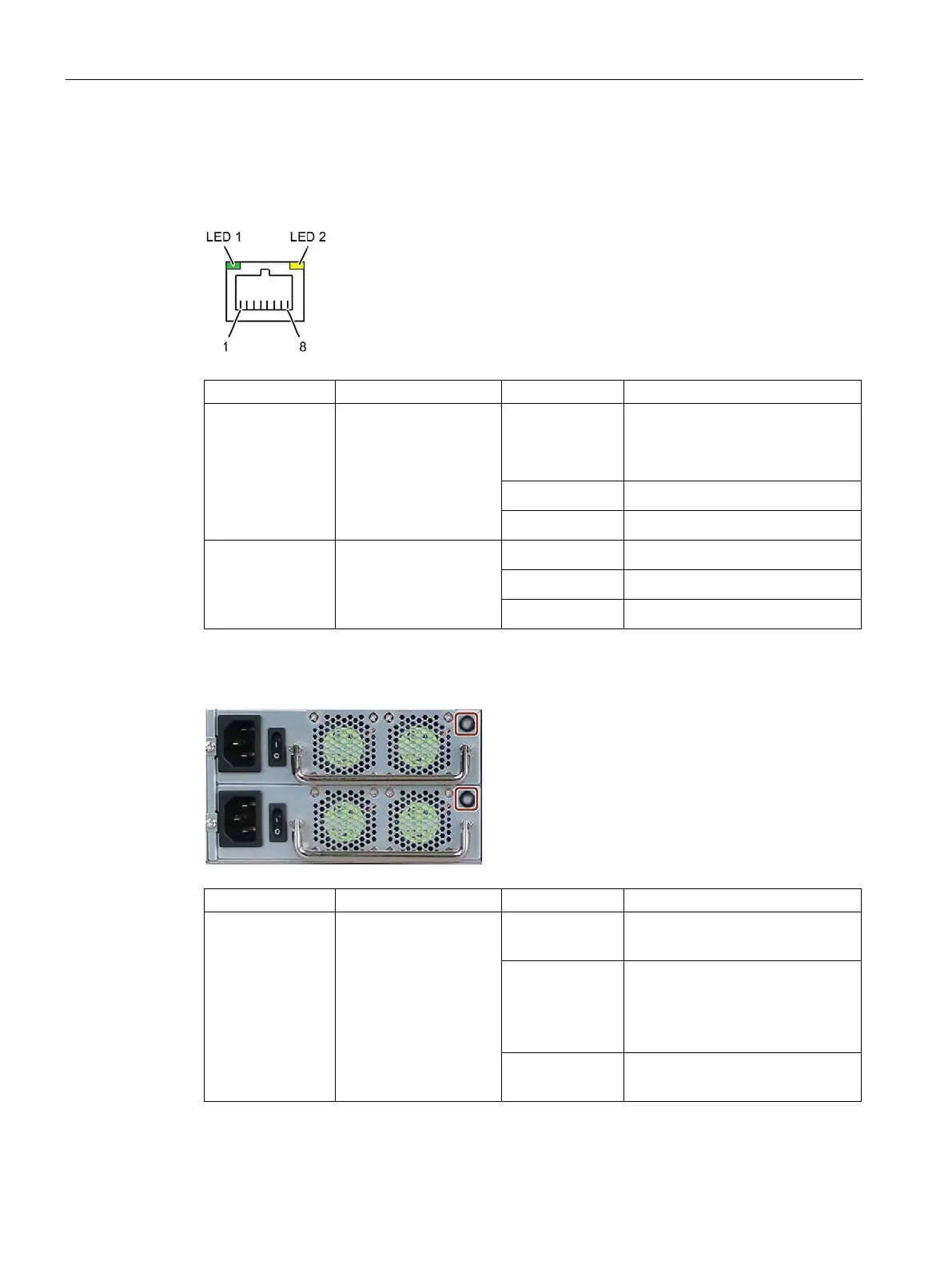

1.4.7.2 Status display of the Ethernet interface
The Ethernet interfaces are numbered on the enclosure to identify them clearly.
The numbering by the operating system can differ.
Status display
Meaning
Status
Meaning of the status
LED 1 Connection status OFF
• No cable connected
• Cable disabled
• Interface disabled
GREEN
• Active cable connected
GREEN flashing
• Data transfer active
LED 2 Data transmission rate OFF
• 10 Mbps
GREEN
• 100 Mbps
YELLOW
• 1000 Mbps
1.4.7.3 Status display of redundant power supply
Status display
Meaning
Status
Meaning of the status
Status LED (see
marking)
Status of the power
supply module
OFF
• Module is out of service, no
redundancy in effect.
GREEN
• The module is in operation and
functioning.
• Redundancy is in effect when
both modules are operating.
RED
• Module failed, no redundancy
in effect.
