1.4 External design of the device
SIMATIC IPC647E
18 Operating Instructions, 11/2018, A5E45589180-AA
1.4.3 Drive cage type B
The drive cage type B is located behind the front door.
In drive cage type B, drives are permanently installed inside and cannot be accessed
externally.
The drives are particularly well protected in the drive cage against vibrations ("vibration-
dampened drive cage").
Changing the drives for maintenance purposes can be done through the front opening after
the front panel has been unlatched.

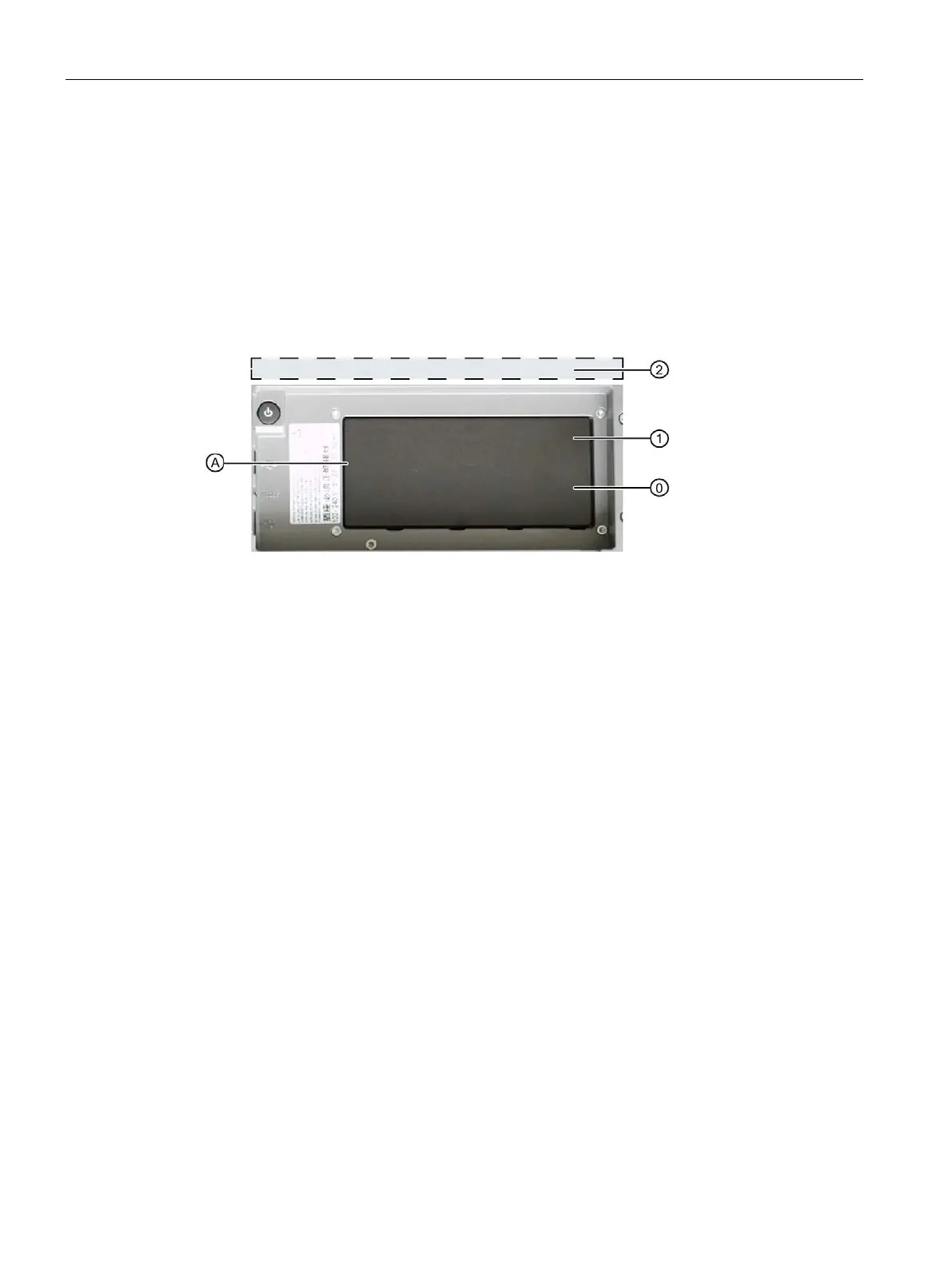

Drive bays
(0)
Mounting location 0
Mounting space for 3.5" drive in a shock/vibration-damped system
(1)
Mounting location 1
Mounting space for 3.5" drive in a shock/vibration-damped system
(2)
Mounting location
internally
Mounting space for 2 x 2.5" drive internally (see
Drives in drive cage
type B (Page 110))
Components
(A)
Cover
Additional information
Technical notes and information on the conditions of usage are available in the section
Drives in drive cage type B (Page 110).
