Dimension drawings
9.3 Dimension drawing of the telescope rails
SIMATIC IPC647E
Operating Instructions, 11/2018, A5E45589180-AA
157
9.3 Dimension drawing of the telescope rails

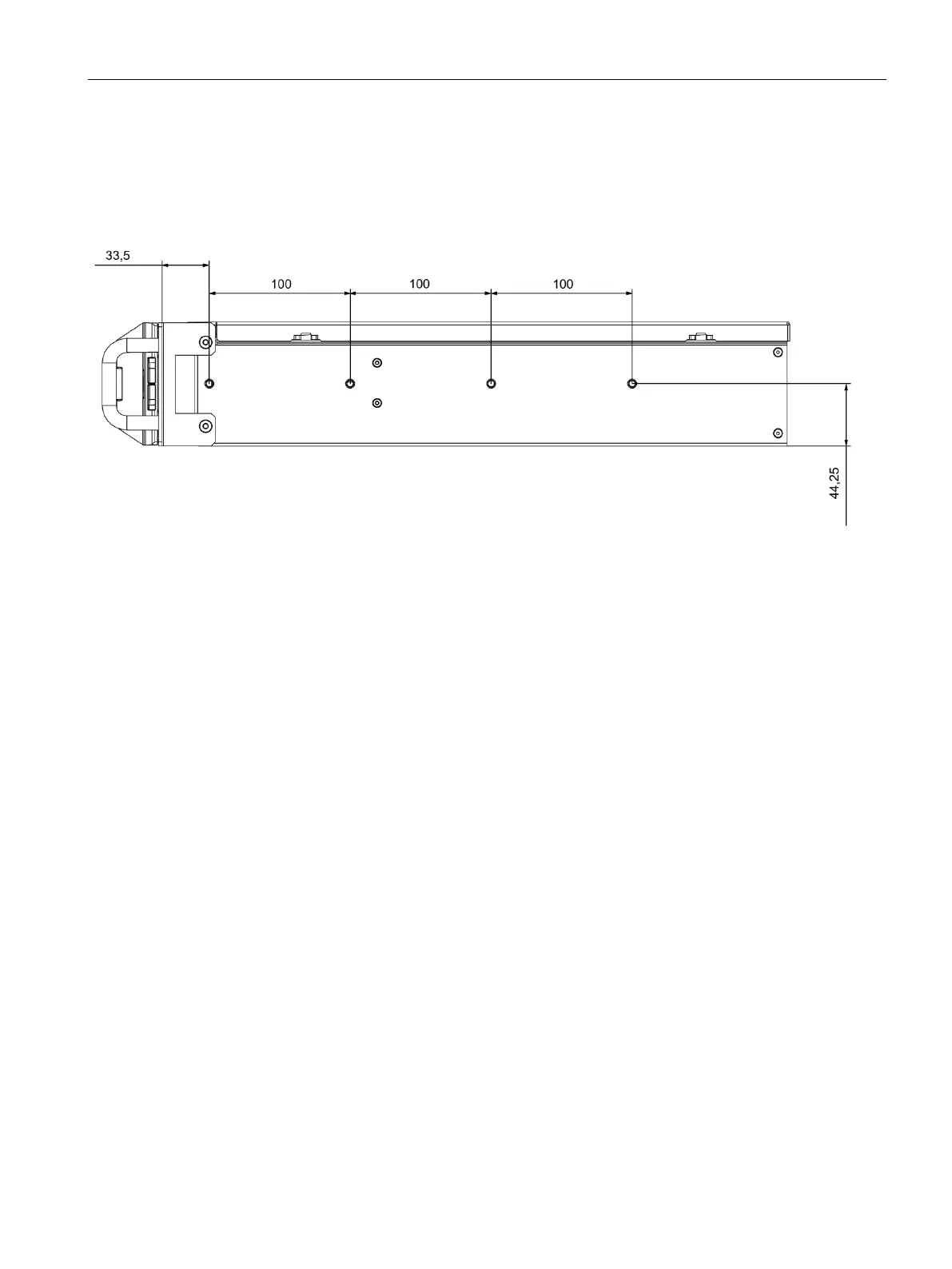

Dimensions for bore holes for telescopic rails
All dimensions in mm
T1 = 0.1 mm
T1 = 0.3 mm
T1 = 0.5 mm
Dimensions of telescopic rails from the Rittal Type company, Type 3659
TS 3659.180 for 600 mm cabinet
TS 3659.190 for 600 mm cabinet
Dimensions of telescopic rails from the Heitec company
RP 3659.180 for 600 mm cabinet
RP 3659.190 for 600 mm cabinet
