Product description
1.4 External design of the device
SIMATIC IPC647E
16 Operating Instructions, 11/2018, A5E45589180-AA
1.4 External design of the device

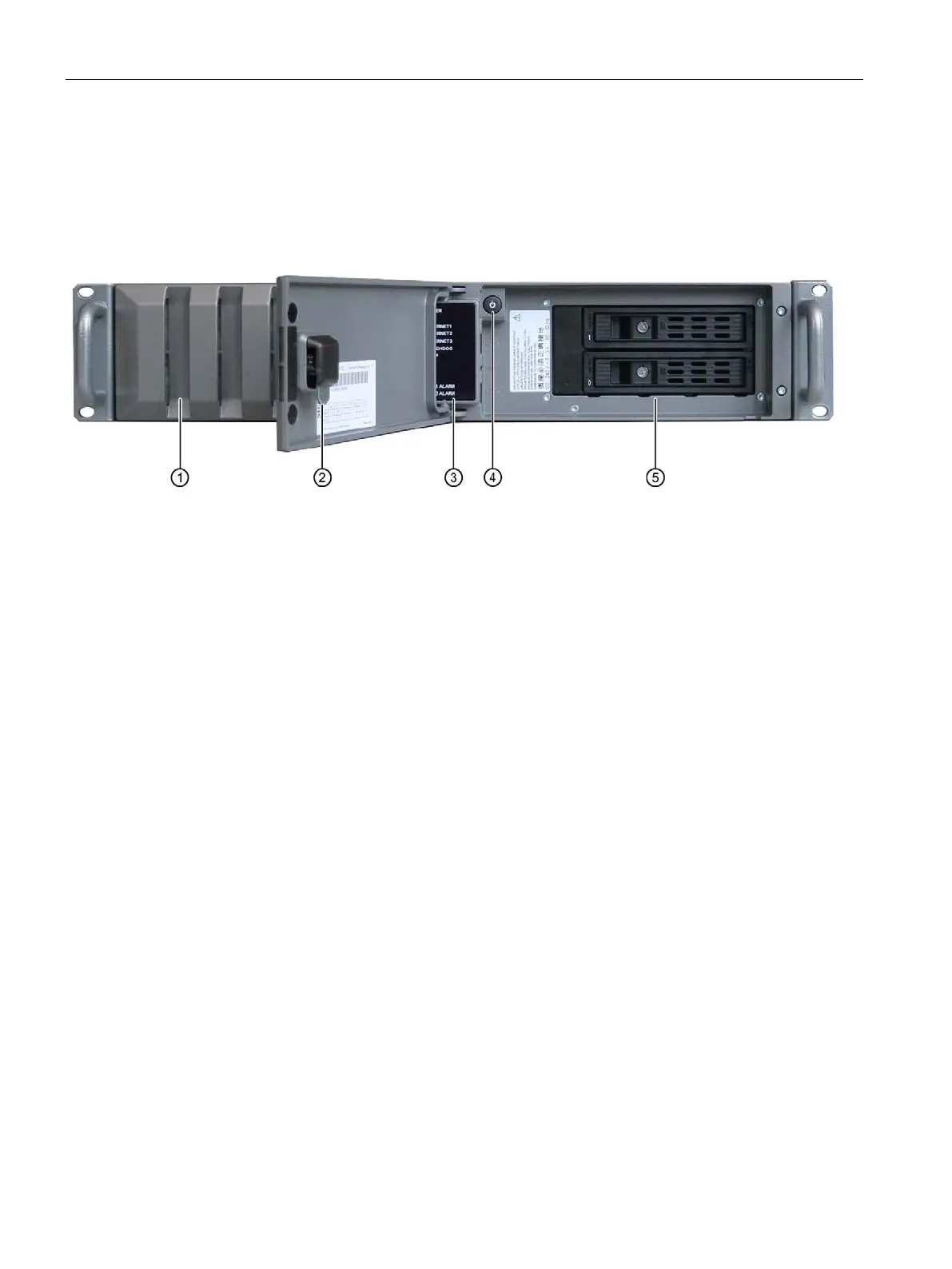

1.4.1 Front panel
①
Fan cover on front fan with openings to ventilate the device (locked with front door)
②
Front door: lockable, protection against unauthorized access
Lock
•
Key vertical: open
•
Key horizontal: closed
③
System status displays
(Page 24)
④
On
-off button
⑤
Mounting spaces for drives
See also
Interfaces (Page 20)
Operator controls (Page 22)
