Expanding and assigning parameters to the device
6.6 Drives
SIMATIC IPC647E
114 Operating Instructions, 11/2018, A5E45589180-AA
6.6.2.3 Permissible expansion for temperature range 0 to 50 °C
Note
If the device is permanently installed or mounted on telescopic rails, or operated as a tower,
it may only be subjected to vibration stress during operation as described below:
trictions do not apply for the use of SSD.
The maximum permitted power loss of the expansion cards is 30
W.
You can install the following drives in the Type B drive cage at various mounting locations.
You can find information on the mounting locations under:
● Drive cage type B (Page 18)
Installation options

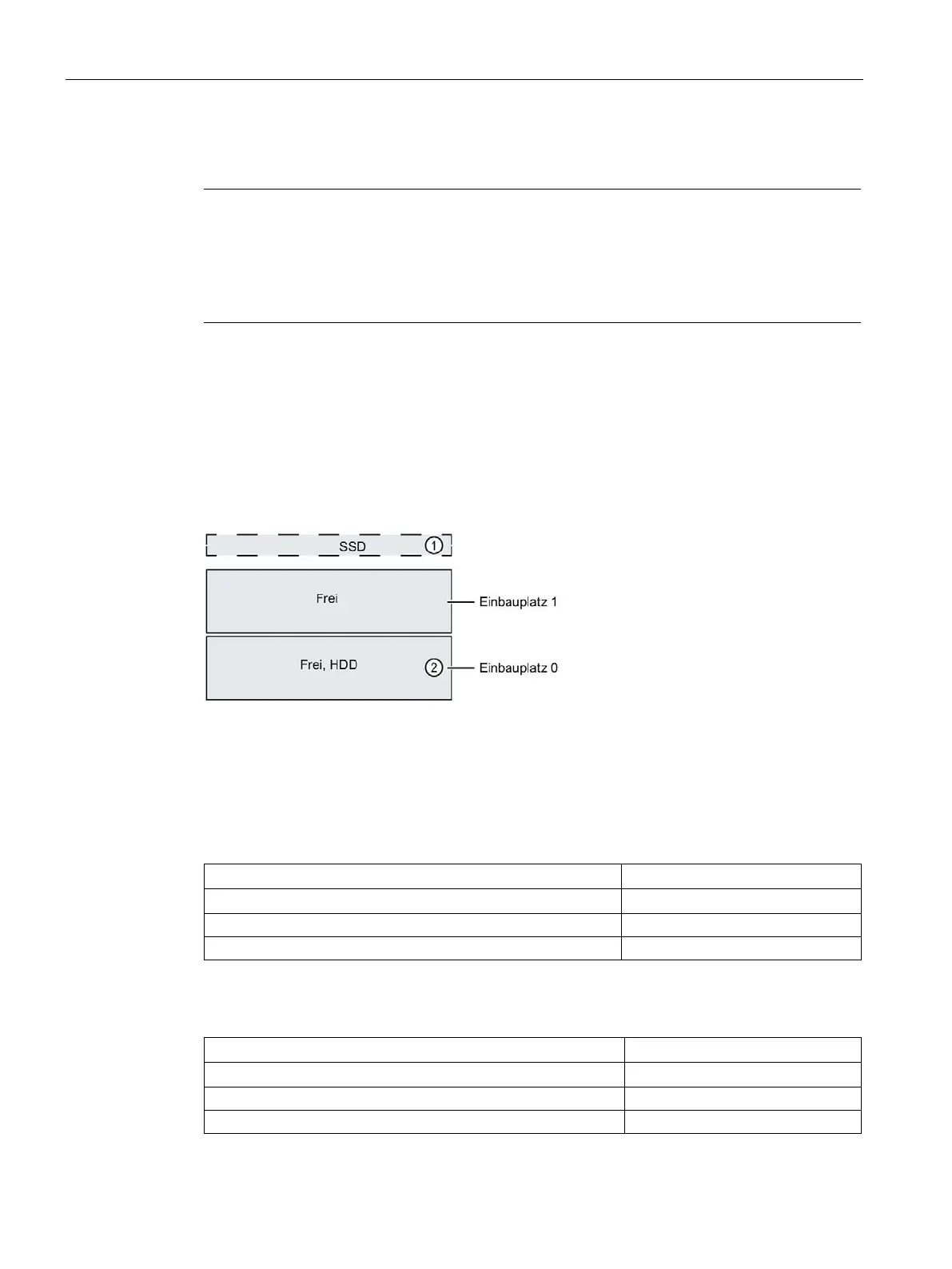

The following figure gives you an overview of the installation options for drives.
1 or 2 SSDs permanently in-
stalled
1 "SATA" drive type is possi-
ble
The maximum permitted power loss of the expansion cards is 30 W. When installing a SATA
HDD, no additional power loss of the expansion cards is permitted.
● 10 Hz to 58 Hz: 0,0375 mm
● 58 Hz to 500 Hz: 5 m/s
2
Vibrations may not exceed 500 Hz.
Maximum number of drives per drive type (alternative)
(in removable tray)
