Product description
1.5 Internal construction of the device
SIMATIC IPC647E
28 Operating Instructions, 11/2018, A5E45589180-AA

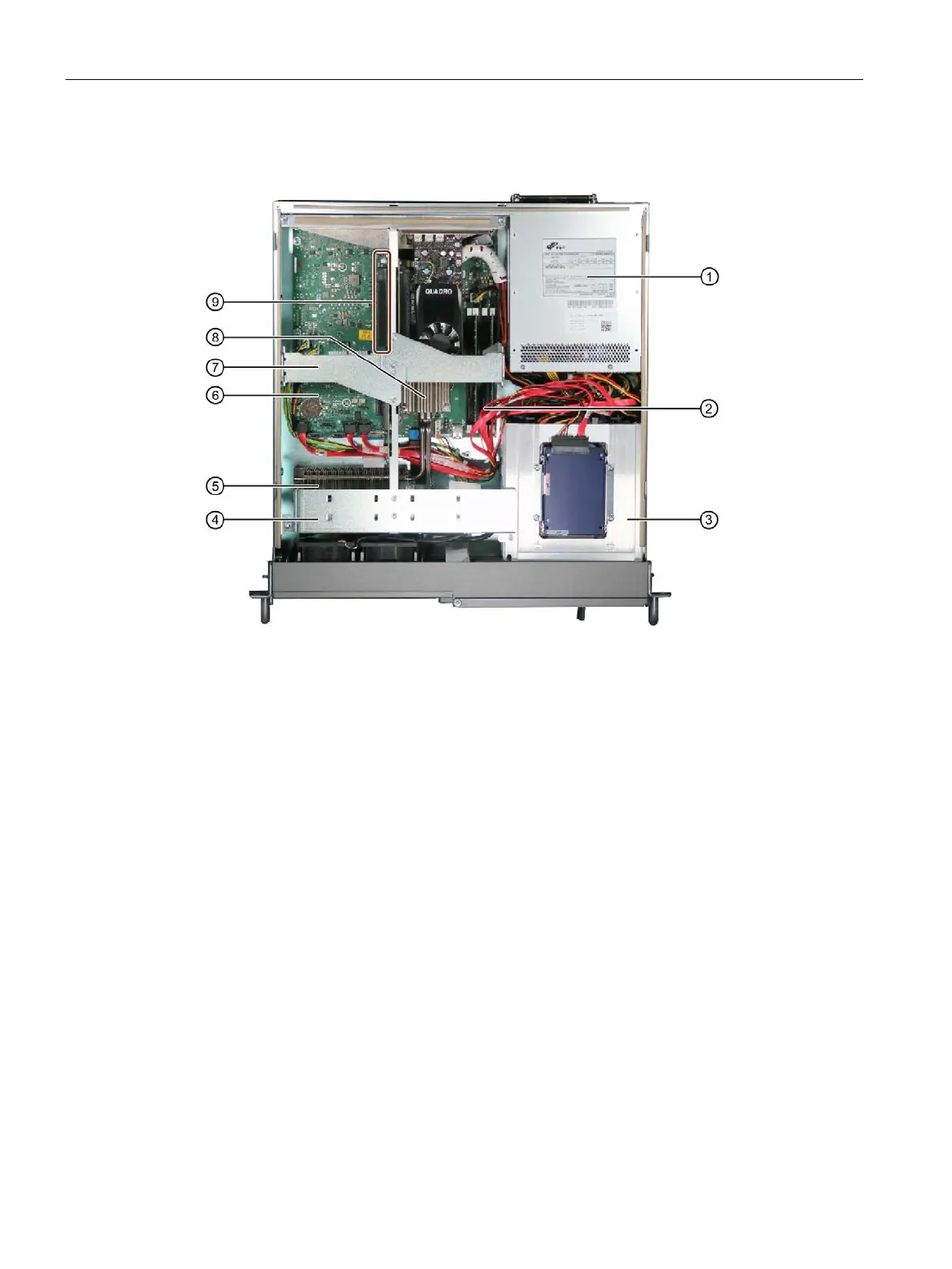

1.5 Internal construction of the device
①
Power supply, single or redundant
②
4 x memory module slots
③
Drive cage
④
Guide rail for long expansion cards
⑤
Heat sink; connected to heat transport via 2 heat pipes with heat sink of the processor ⑦
⑥
Motherboard
⑦
Retainer for expansion modules
⑧
Heat exchanger of the processor
⑨
Bus board with expansion card slots
