Siemens SIMATIC IPC647E

Product description
1.4 External design of the device
SIMATIC IPC647E
20 Operating Instructions, 11/2018, A5E45589180-AA
1.4.5 Interfaces and connections
1.4.5.1 Interfaces
Note
Yo
u can find detailed information on interfaces under "External interfaces (Page 178)".

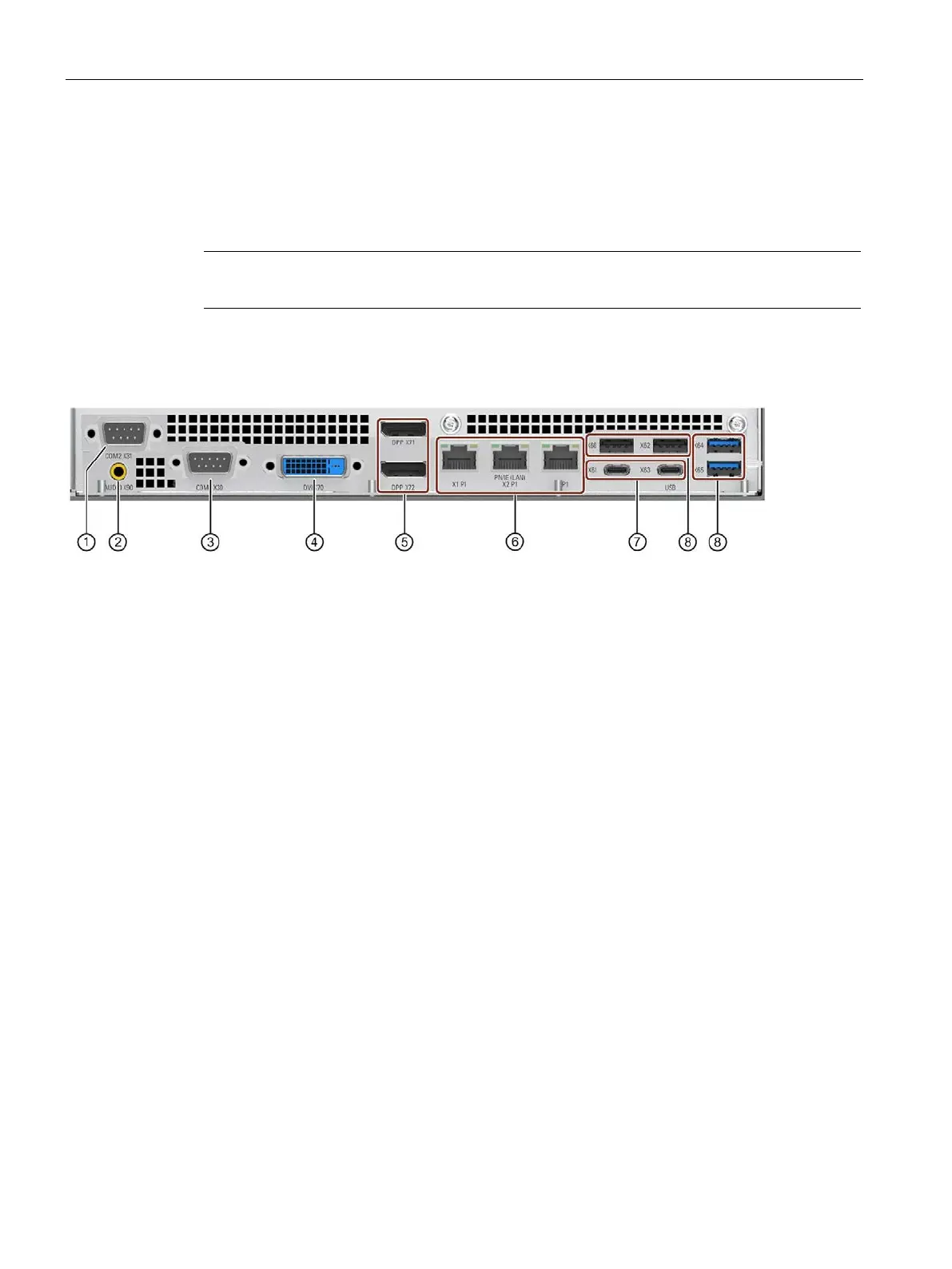

Interfaces at rear of device
①
COM2 X31
(optional)
Serial port 2 (V.24), 9-pin SUB-D socket (optional)
②
Audio X90
UAJ connector for audio devices, 2.5 mm jack socket
③
CCOM1 X30
Serial port 1 (V.24), 9-pin SUB-D socket
④
DVI X70
Connection for monitor with DVI-D interface
⑤
2 x DPP X71/X72
Connections for DisplayPort:
•
Connection for monitors with DisplayPort
•
Connector for monitor with VGA interface via DP/VGA adapt-
er, see
Hardware accessories (Page 29)
•
Connector for monitors with DVI interface via DP/DP
I adapter,
see Hardware accessories (Page 29)
⑥
3 x Ethernet
X1P1/X2P1/X3P1
Connections for Ethernet RJ45 for 10/100/1000 Mbps,
Ethernet
X1P1 is iAMT-capable
Ethernet ports are numbered on the enclosure. The numbering by
the operating system may differ from this.
⑦
2 x USB
X61/X63
USB 3.1 GEN 2 Type C high current, backward compatible with
USB 3.0/2.0/1.1
⑧
2 x 2 USB
X60/X62/X64/X65
USB 3.1 GEN 2 Typ A high current, backward compatible with
USB 3.0/2.0/1.1
