Expanding and assigning parameters to the device
6.6 Drives
SIMATIC IPC647E
118 Operating Instructions, 11/2018, A5E45589180-AA
6. Pull the drive forward out of the frame.

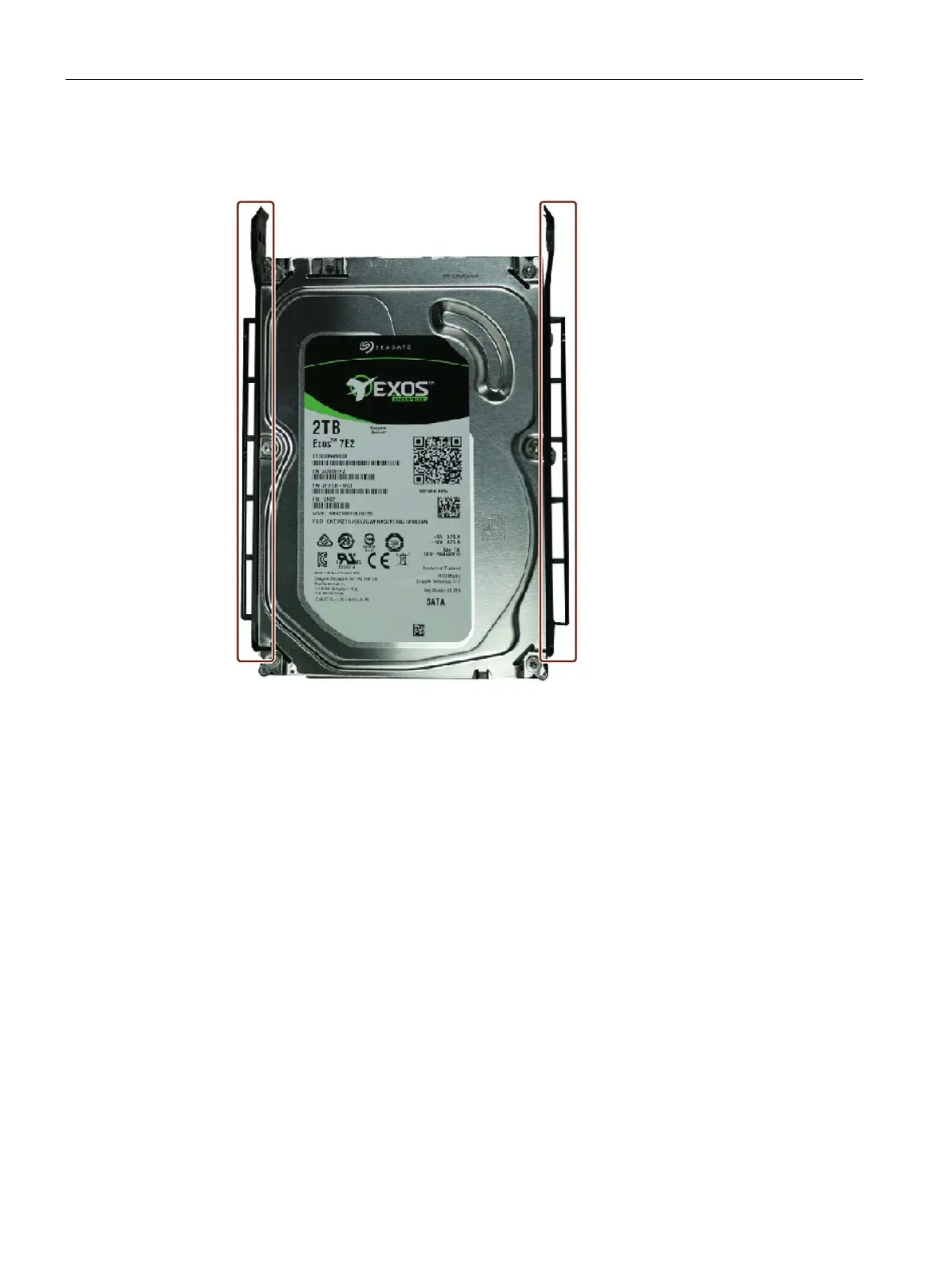

7. Remove both drive mounting bars.
Installation procedure - Drive in the frame
Proceed in the opposite direction.
Ensure that the mounting bars noticeably engage when the drive is inserted.
