Expanding and assigning parameters to the device
6.6 Drives
SIMATIC IPC647E
Operating Instructions, 11/2018, A5E45589180-AA
117
Removal procedure - Drive in the frame

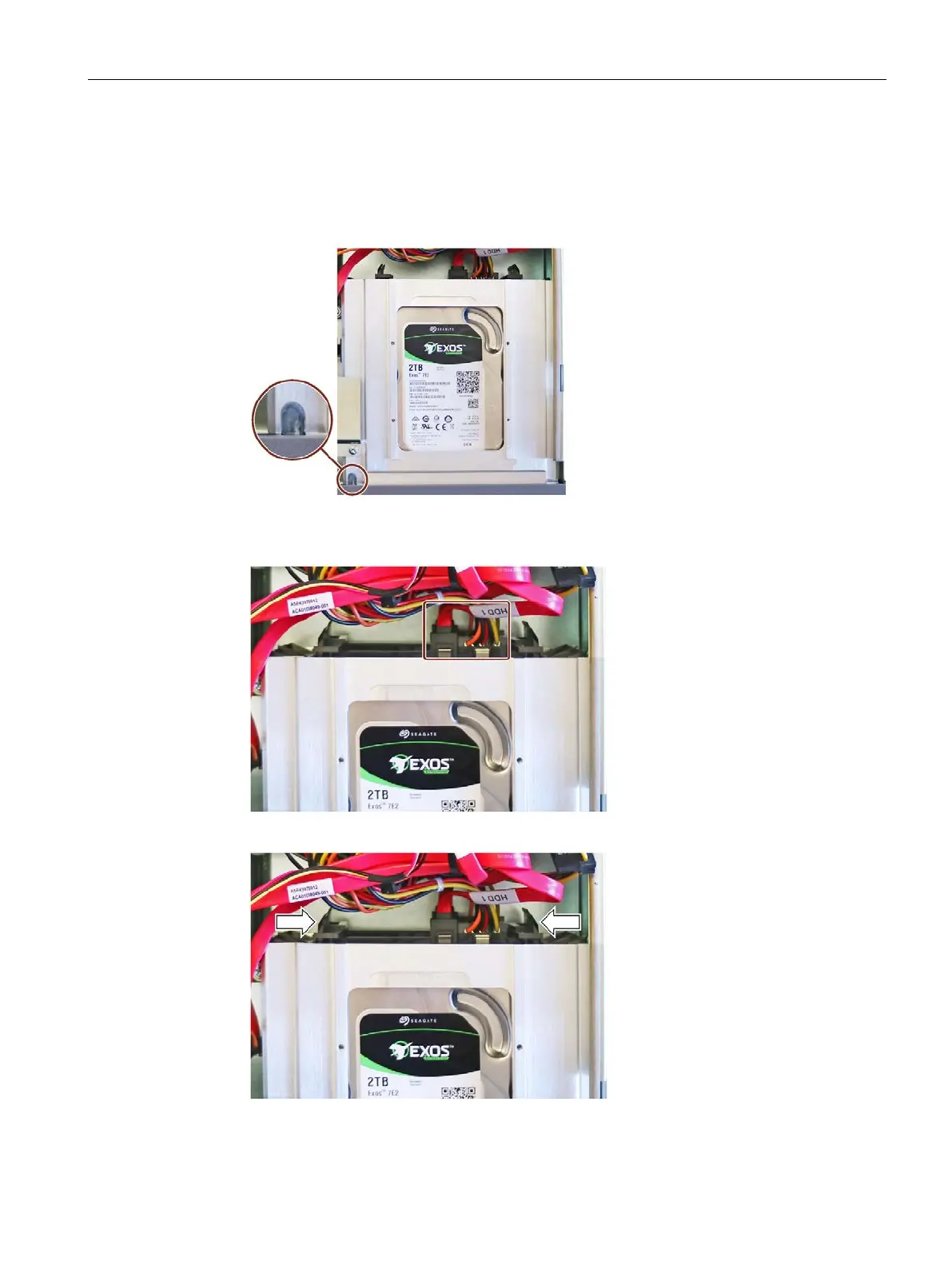

1. Remove the drive from the frame.
2. Press down the marked location with a suitable object (e.g. a screwdriver) until the drive
faceplate is audibly released.
3. Remove the drive panel.
4. Unlock the marked connector and pull it out.
5. Press both clips inward at the same time; the drive automatically slides out.
