Expanding and assigning parameters to the device
6.6 Drives
SIMATIC IPC647E
120 Operating Instructions, 11/2018, A5E45589180-AA

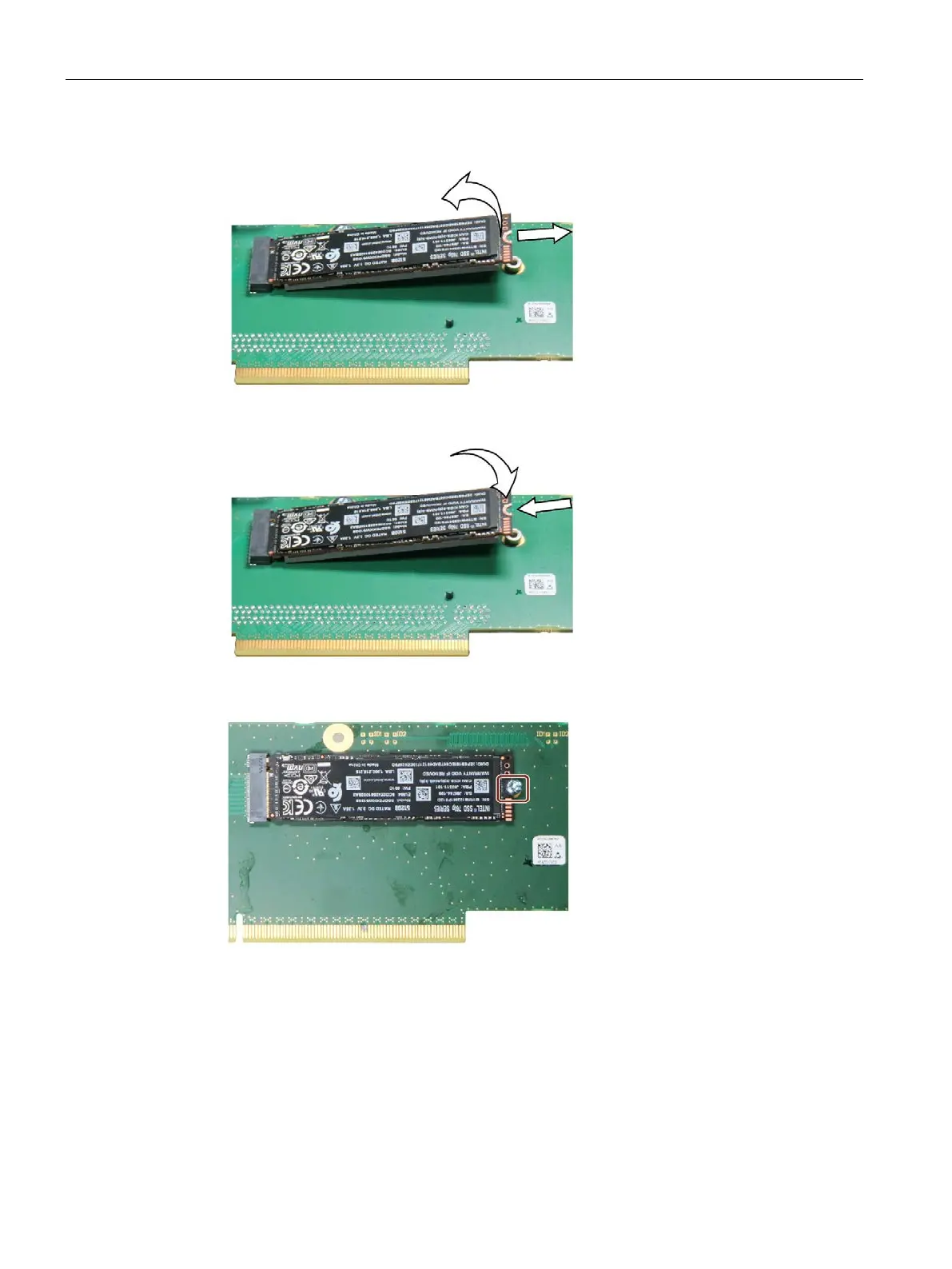

3. Lift the M.2 NVMe SSD slightly as shown and pull it from the direct female connector.
4. Place the thermal pad under the M.2 NVMe SSD and insert the M.2 NVMe SSD slightly
inclined from above into the provided direct connector socket.
5. Place the spacer back in, carefully push the M.2 NVMe SSD down and secure it with the
screw.
6. Install the bus board again and then the bus frame; seeRemoving/installing the bus frame
(Page 133).
