Device maintenance and repair
7.3 Removing and installing hardware
SIMATIC IPC647E
Operating Instructions, 11/2018, A5E45589180-AA
125

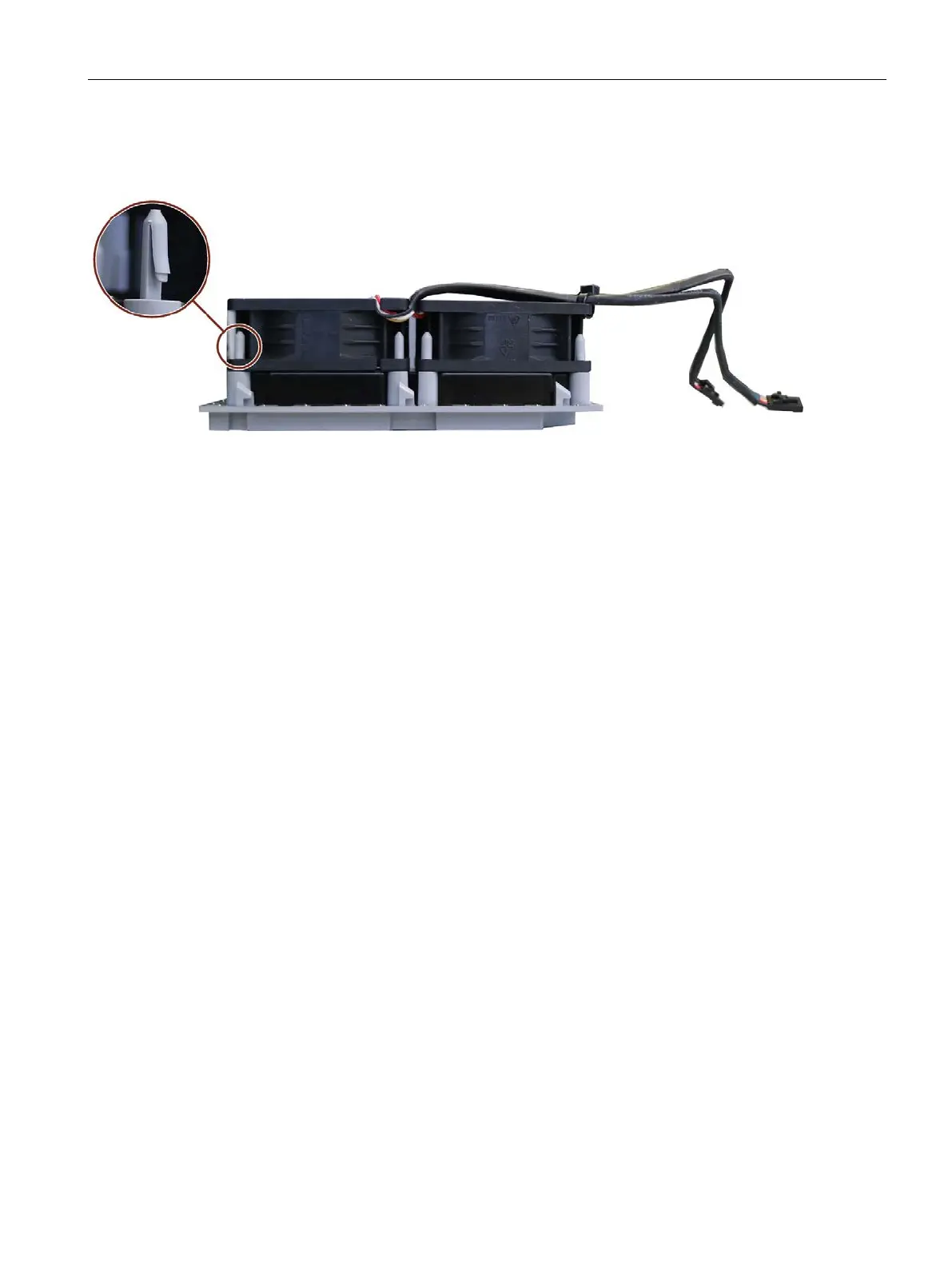

6. Press the four clips of the fan support and remove the first fan upwards.
Repeat this step as well with the second fan.
7. Place the new fan on the clips and press the fan down until all latches lock.
Repeat the process for the second fan as well.
8. Fasten the two fan cables with a cable tie to the fan housing.
9. Re-insert the small fan cable plug
② in the larger adapter plug-in connector ③ until it
latches in.
10. Place the fan support with the new fan on the front of the device.
See also
Hardware accessories (Page 29)
Maintenance intervals (Page 121)
