Device maintenance and repair
7.3 Removing and installing hardware
SIMATIC IPC647E
Operating Instructions, 11/2018, A5E45589180-AA
129

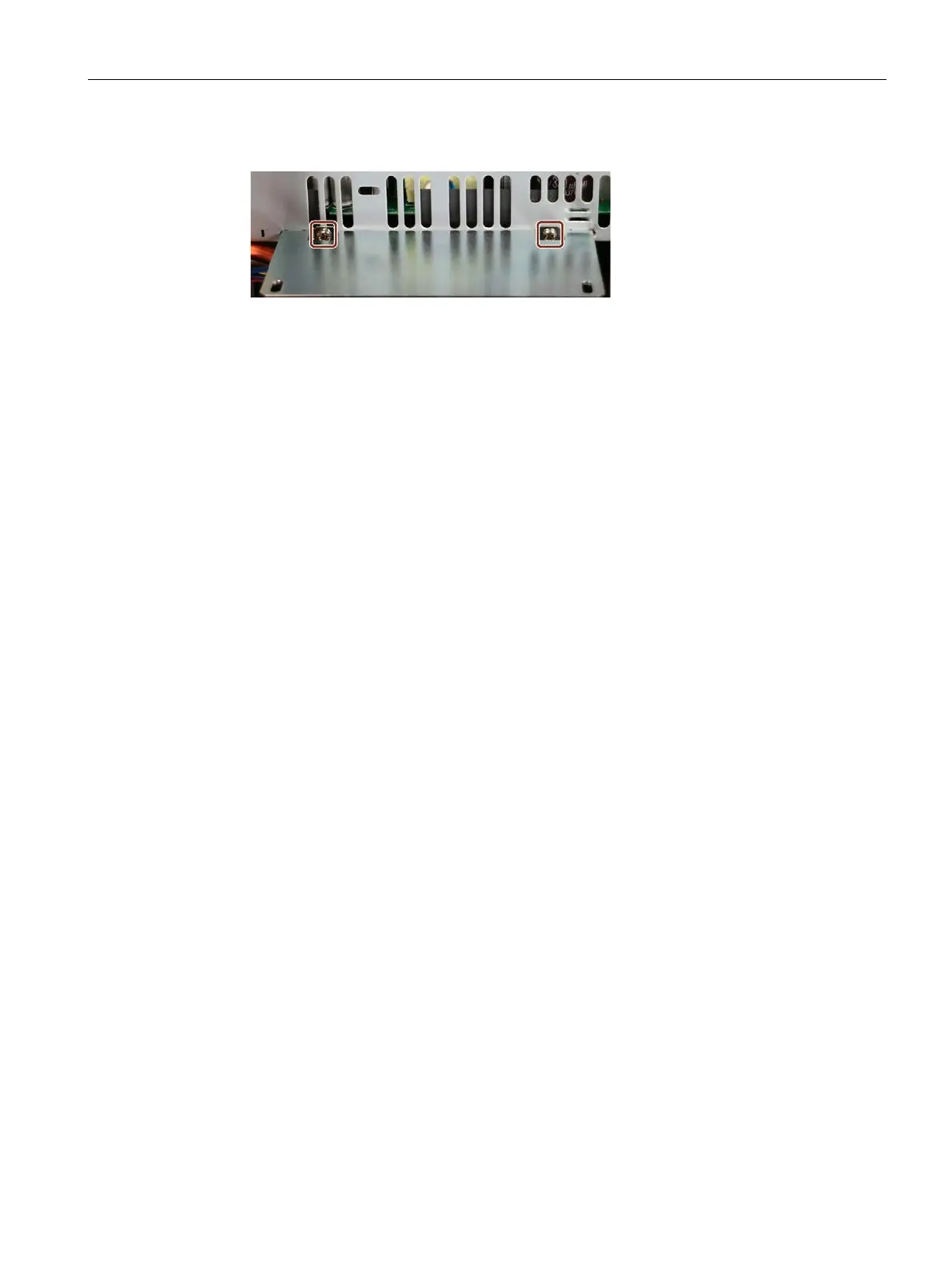

7. Mount the mounting bracket as shown on the enclosure of the new power supply.
8. Install the new power supply.
9. Fasten the power supply with the screws at the enclosure front.
10. Connect the cables to the drives and the motherboard.
11. Use cable ties to reattach the power supply cables to the enclosure.
12. Close the device.
13. Check the safe state of the device.
14. Switch on the power supply.
See also
Hardware accessories (Page 29)
