Siemens SIMATIC IPC647E

Hardware description
A.3 Bus board
SIMATIC IPC647E
174 Operating Instructions, 11/2018, A5E45589180-AA
Variant 2: 4-slot, 2 x PCIe, 2 x PCIe / with piggyback

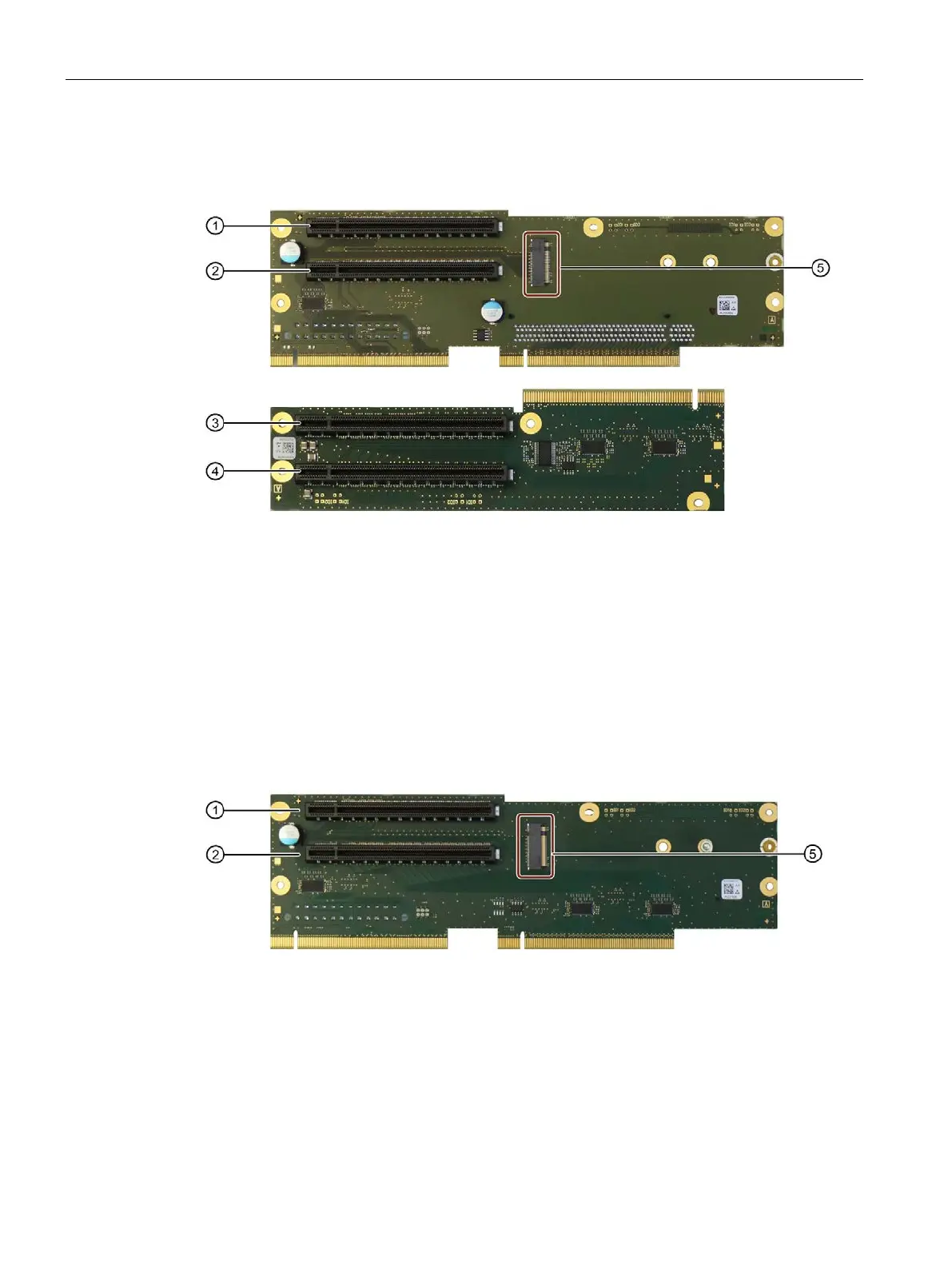

The following figure shows the bus board on top and the piggyback on the bottom.
①
1 x PCIe x16 (4 lanes)
Associated name on the rear of the device: Slot 1
②
Slot PCIe x16 (1 lane)
Associated name on the rear of the device: Slot 4
③
8 x PCIe x16 (8 lanes) slot; piggy-
back
Associated name on the rear of the device: Slot 3
④
8 x PCIe x16 (8 lanes) slot; piggy-
back
Associated name on the rear of the device: Slot 2
⑤
Slot M.2 NVMe PCIe Key M x4 (4
lane)
Slot 5; internal
Variant 3: 2-slot, 2 x PCIe / without piggyback
The following figure shows the bus board.
①
1 x PCIe x16 (4 lanes)
Associated name on the rear of the device: Slot 4
②
Slot PCIe x16 (16 lanes)
Associated name on the rear of the device: Slot 1
⑤
Slot M.2 NVMe PCIe Key M x4 (4
lane)
Slot 5; internal
See also
Technical specifications (Page 141)
