Expanding and assigning parameters to the device
6.1 Open the device
SIMATIC IPC647E
86 Operating Instructions, 11/2018, A5E45589180-AA

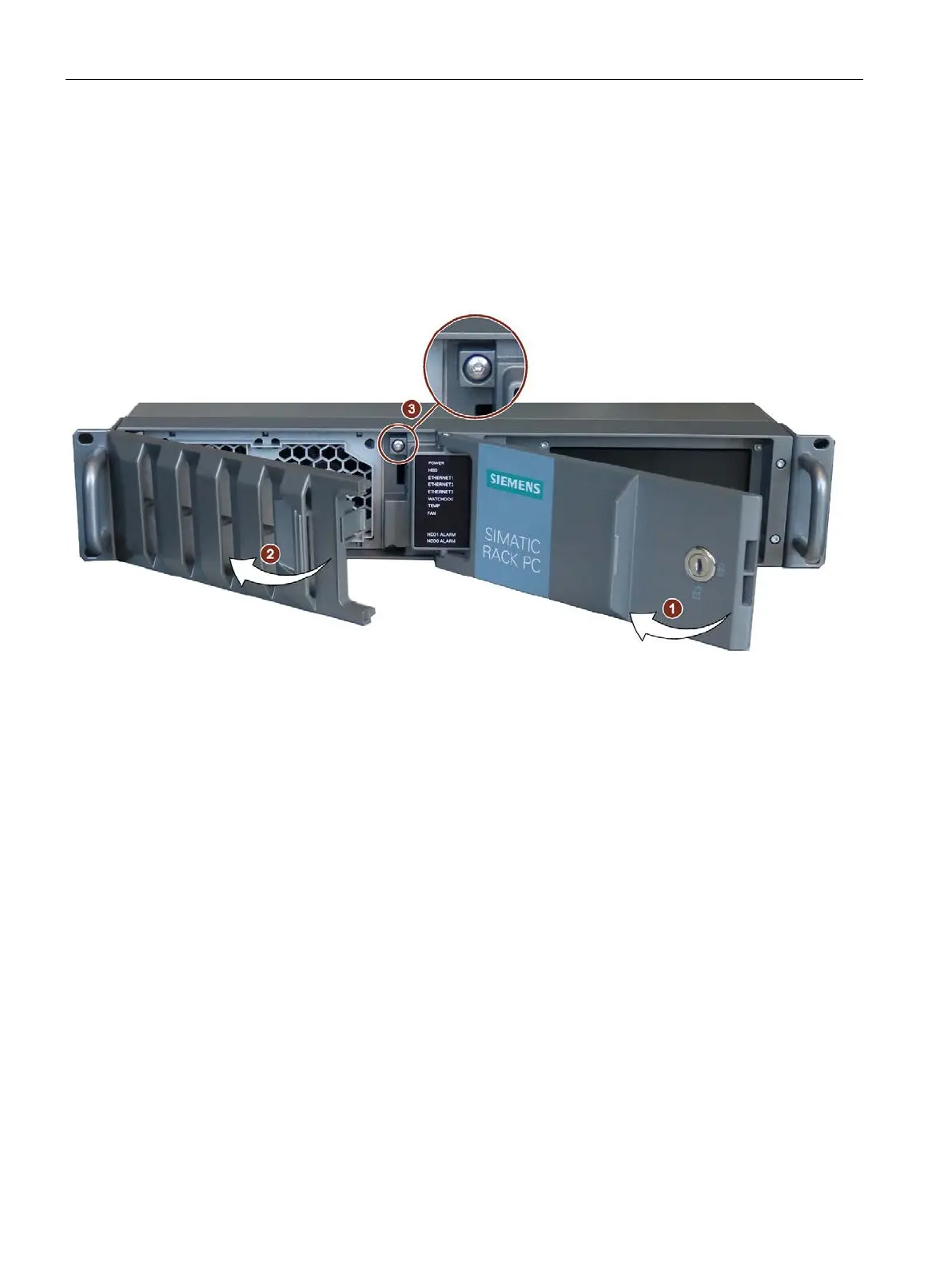

Procedure
1. Open the fan cover.
2. Remove the captive screw.
3. Push the enclosure cover back.
4. Lift up and remove the enclosure cover.
