How does the converter calculate the moment of inertia?
0
/

0RPHQWRILQHUWLD
HVWLPDWLRQLVDFWLYH
0RWRUWRUTXH00
0LQLPXPWRUTXH
$FFHOHUDWLQJWRUTXH
0%
6SHHG
/RDGHVWLPDWRULV
DFWLYH
&DOFXODWHGPRPHQWRI
LQHUWLD
U
S
W
W
W
W
W
W

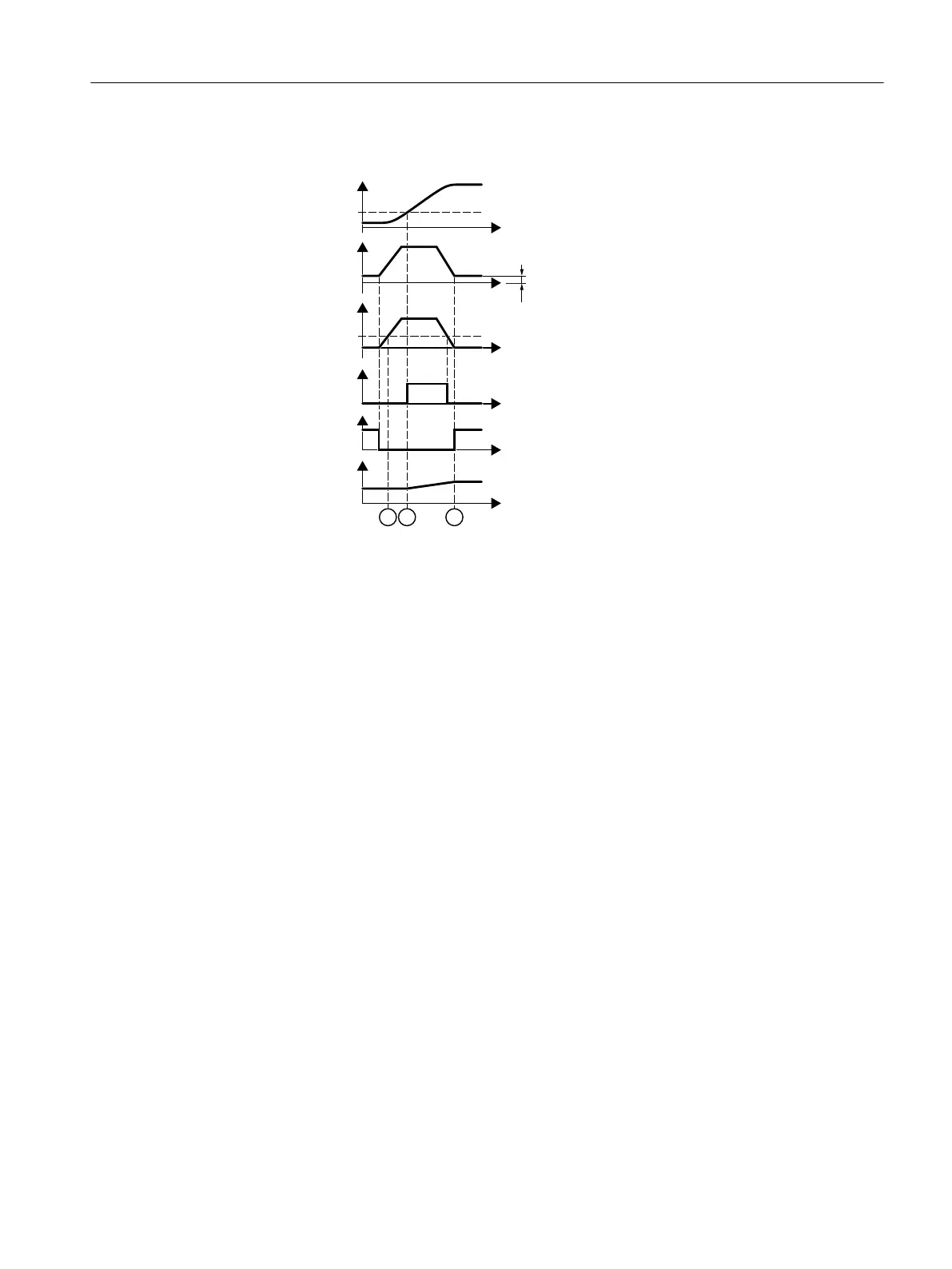

Figure8-59 Calculating the moment of inertia
For higher speed changes, the converter initially calculates the accelerating torque M
B
as
di󹪜erence between the motor torque M
M
, load torqueM
L
and frictional torque M
R
:
M
B
= M
M
- M
L
- M
R
Moment of inertia J of the motor and load is obtained from the accelerating torque M
B
and
angular acceleration α (α=rate at which the speed changes):
J=M
B
/α
If all of the following conditions are met, the converter calculates the moment of inertia:
• ① The rated accelerating torque M
B
must satisfy the following two conditions:
– The sign of M
B
is the same as the direction of the actual acceleration
– M
B
> p1560× rated motor torque (r0333)
• ② speed > p1755
• The converter has calculated the load torque in at least one direction of rotation.
• Acceleration setpoint > 81/s
2
(≙ speed change 480rpm per s)
③ The converter calculates the load torque again after acceleration.
Moment of inertia precontrol
In applications where the motor predominantly operates with a constant speed, the
converter can only infrequently calculate the moment of inertia using the function described
above. Moment of inertia precontrol is available for situations such as these. The moment
of inertia precontrol assumes that there is an approximately linear relationship between the
moment of inertia and the load torque.
Example: For a horizontal conveyor, in a 󹪝rst approximation, the moment of inertia depends
on the load.
