Siemens SINAMICS G120C DP

Connecting the line supply and motor, frame size FSF

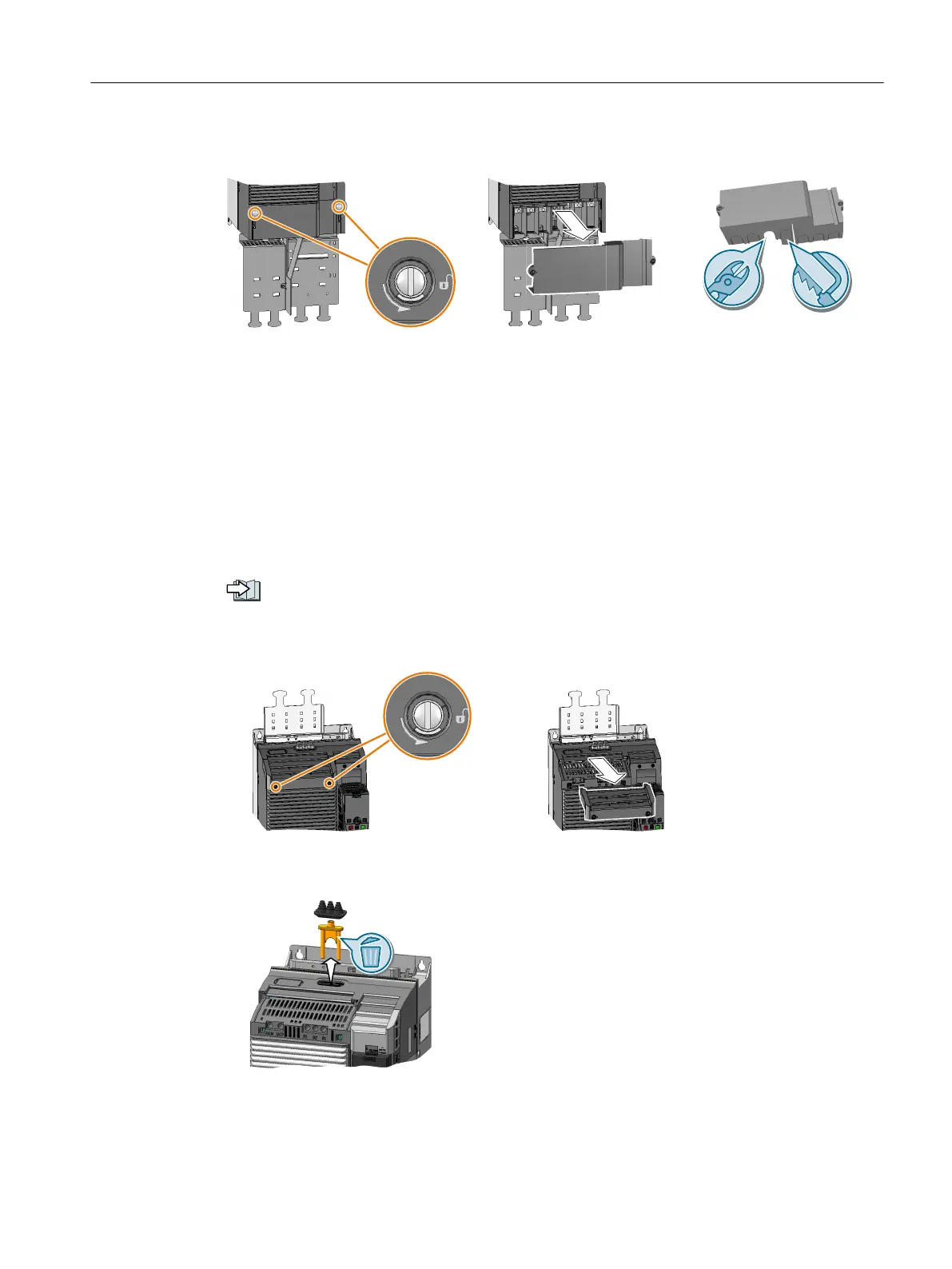

Figure4-31 Connecting the line supply and motor, FSF
Remove the lower connection covers.
Use side cutters or a 󹪝ne saw blade to make openings in the cover for the cables.
You must re-attach the covers in order to re-establish the touch protection of the converter
after the cables have been connected.
Connecting the braking resistor, frame sizes FSD…FSF
We recommend mounting the shield plate. The shield plate is not included in the scope of
delivery of the converter.
Overview (Page403)
Procedure
1. Remove the upper converter cover.
2. Release the two braking resistor terminals.
3. Remove the seal together with the connection cover upwards away from the converter.
4. Adapt the seal to the cable cross-section.
Installing
4.9Connect the line supply, motor and braking resistor
SINAMICS G120C Converters
Operating Instructions, 02/2023, FW V4.7 SP14, A5E34263257B AK 73
