09.95
ï›™
Siemens AG 2001 All Rights Reserved 6FC5197–jAA50
4–46
SINUMERIK 840C (IA)
Symbolic color
Picture elements
Back-
ground
color
Text
color
Text
back-
ground
Border
color
Border
backgr.
Configuration area 0 and 1 89 free 88 –– ––
Application field 88 –– –– –– ––
Cursor text in config. area –– free 88 –– ––
Dialog line 70 69 70 91 88
Cursor text in dialog line –– free 70 –– ––
Input line 74 72 74 91 88
Part program cursor –– 73 88 –– ––
Pseudo part program cursor –– 83 88 –– ––
Actual values –– 83 88 –– ––
Other –– 91 88 91 88
Tab. 4.2 (continued): Assignment of picture elements to symbolic colors
Note The colors 82 and 83 are used in the NCK displays.
In the MMC displays, color index 97 is used for the text background of the display
header line and color index 60 is used for the text color.
Therefore, if changes are made to the POCOLLI, indices 82, 83, 97 and 60 must
be changed.

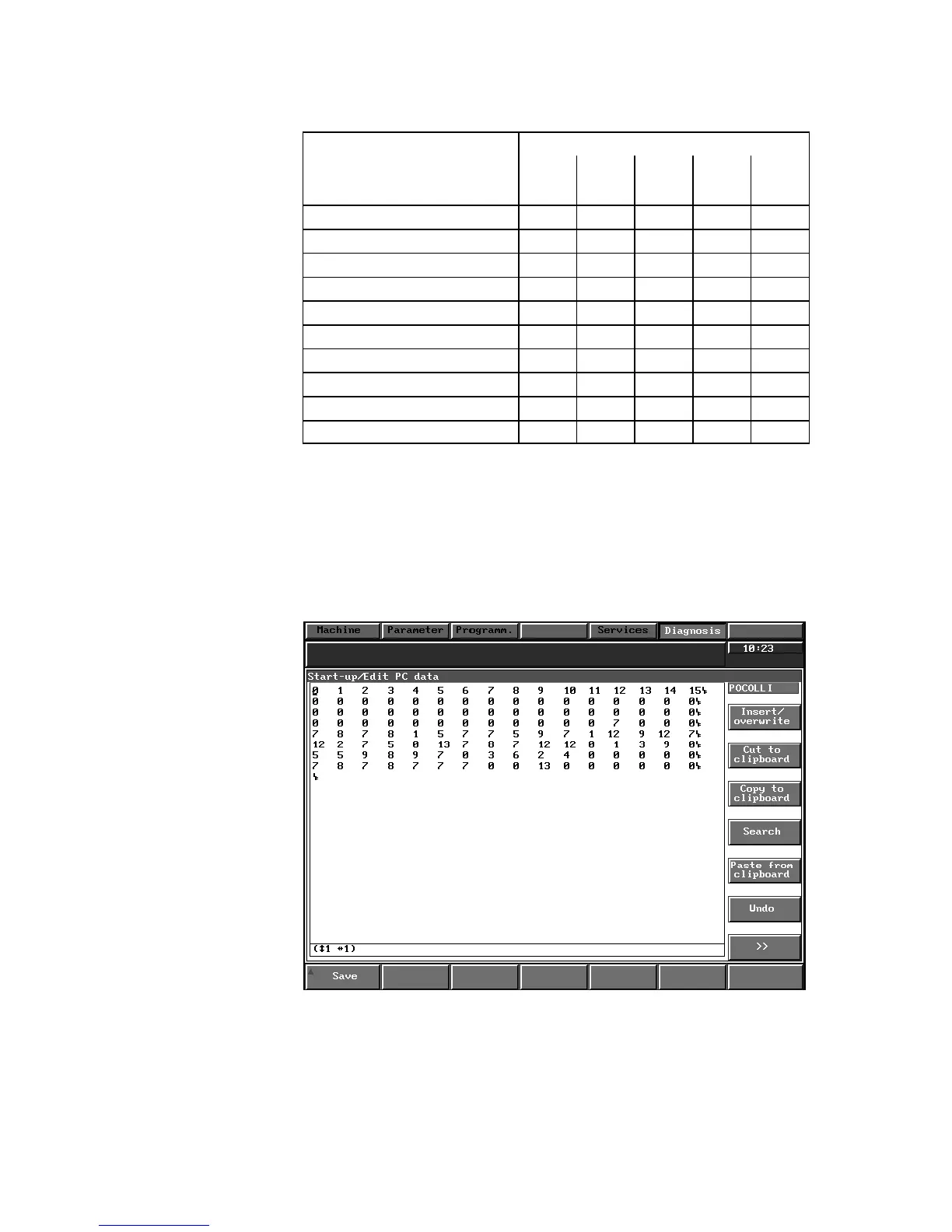

Fig. 4.20 Color mapping list: POCOLLI
4 MMC Area Diagnosis
4.4.5 Color mapping lists
