09.95



5–42

SINUMERIK 840C (IA)

5.9 Procedure for altering configurations

5.9.1 Standard installation of digital drives (as from SW 3)

Specifications (Example) Drive modules 1 double axis FDD module

2 single axis FDD module

1 MSD module

Module slots: Slot 1: MSD module

(Installation location) Slot 2: free

Slot 3: free

Slot 4: 2 axis FDD module

Slot 6: 1 axis FDD module

Entering the Set the configuration from the specified values in the configuration display. Select

drive configuration the actual module type using the Select module softkey. Confirm these settings

with the Accept Conf + NCKP0 softkey.

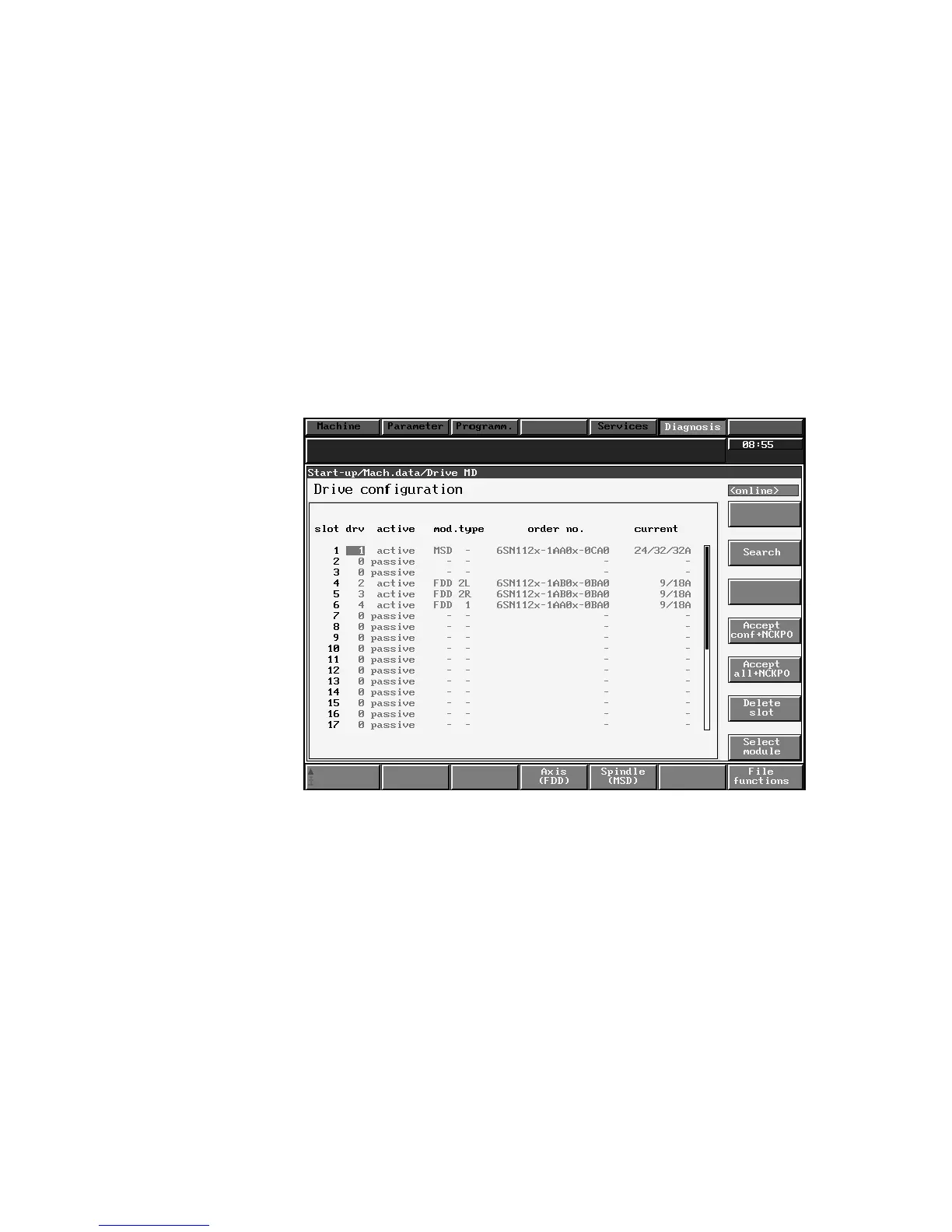

Fig. 5.16

5 Machine Data Dialog (MDD – as from SW 3)
