SINUMERIK 840C (IA)

5.9.6 Using a new motor type (as from SW 3)

Application A new motor type is to be installed on the machine tool. The same drive module

is used.

Procedure Operate the Enter motor softkey in the Motor/PS data display. Select the type of

motor you want. If you are using a motor made by a different manufacturer, you

must adapt the motor data from a data sheet. Confirm this setting with the Ac-

cept Conf + NCKP0 softkey.

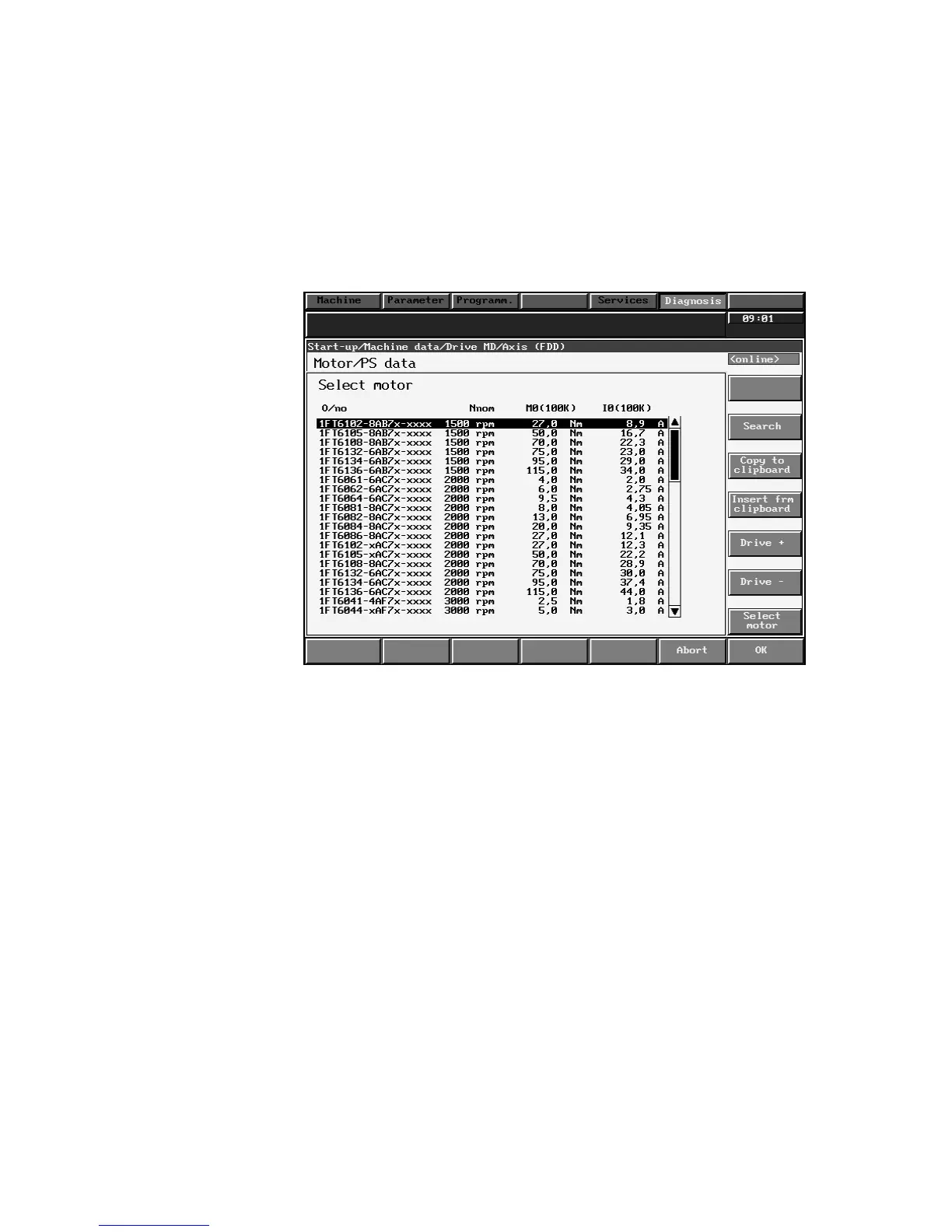

Fig. 5.22

5 Machine Data Dialog (MDD – as from SW 3)

5.9.6 Using a new motor type (as from SW 3)
