4.4 PC data
All data not documented in the following sections must not
be changed.
Overview
\WOP
\MASTER
\LIST MODULE \OPERATION
\LANGUAGES
\MESS.
\CONFIG.
\BASIC
\USER \FUNCTION AREAS ... \DIAGNOSIS
BEDCONF
NECOLLI
POCOLLI
POCOCLUT
POMOCLUT
NEMOCLUT
BEDCONF
NEMOCLUT
NECOCLUT
POMOCLUT
POCOCLUTNECOCLUT
Alt
\
MELDTEXT
MELDINFO
ANWMTEXT
JOB LIST
WOP FILES
CONTROL
SETTINGSATTR.

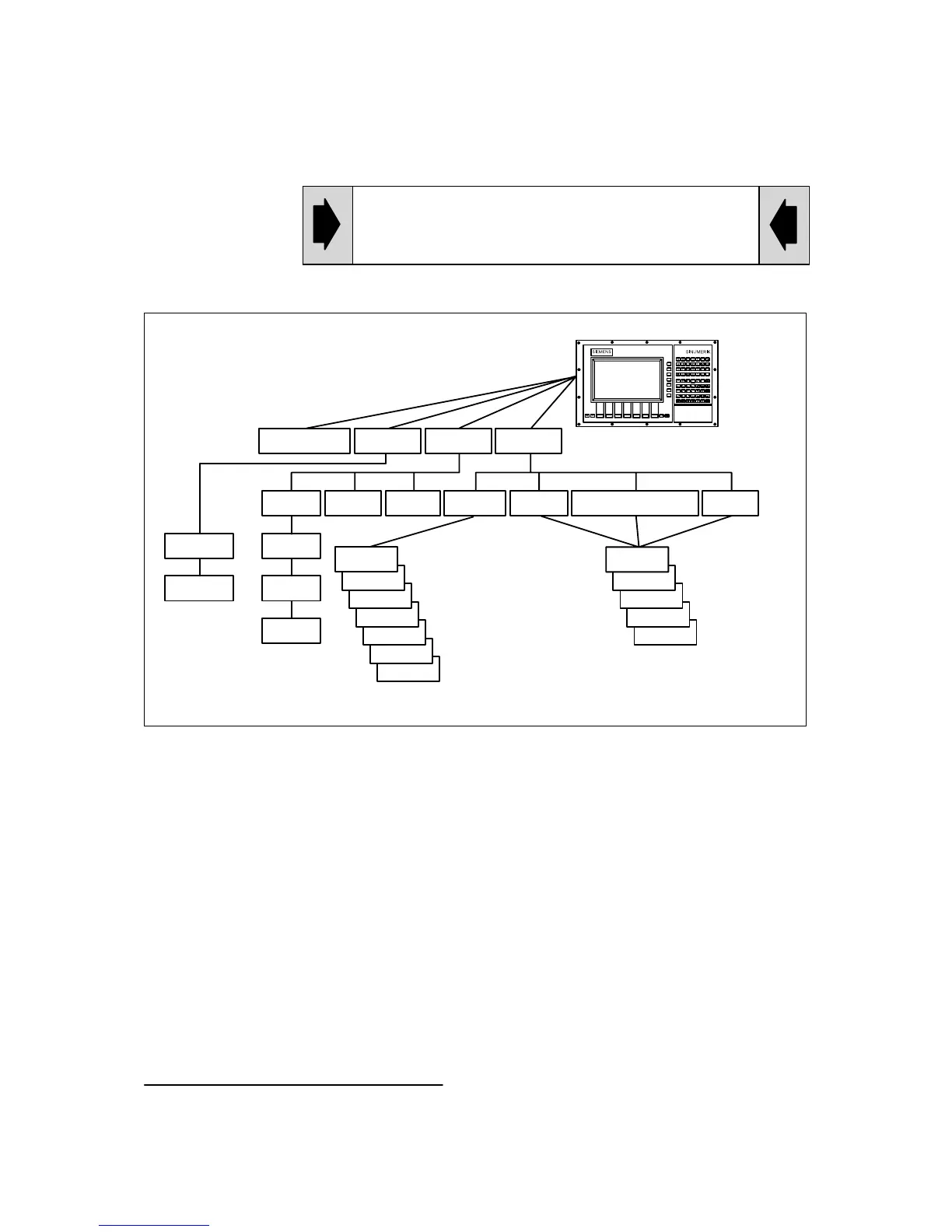

Fig. 4.10 MMC directories and files
Note \LIST_MODULE = directory, MELDTEXT = file
General notes
\List_module Configuration of the MDD using the list module is described in Section Machine
data dialog (MDD SW 3 and higher)
Introduction The user interface of the 840C control is divided into MACHINE, PARAMETERS,
PROGRAMMING, SERVICES, and DIAGNOSIS function areas.
1)
You can set up the operator system using a configuration file and a series of
other files. The files initially contain default values, but you can change these with
the ASCII editor in the MMC area DIAGNOSIS (the ASCII editor is described in
the Operator’s Guide).
The file system is made up of two branches, SIEMENS and USER. SIEMENS
contains the initial system settings which cannot be changed.
If the control does not find any data in the USER branch, it obtains its data from
the SIEMENS branch.
1) As from SW 3 also SIMULATION, as from SW 4 simulation is stored in the PROGRAMMING area.
4 MMC Area Diagnosis
