SINUMERIK 840C (IA)

5.9.5 Drive active or passive (as from SW3)

Application For example, when using a 2-axis FDD module, one of the axes is disconnected

from the bus temporarily.

Procedure Switch the axis from the active to the passive state in the drive configuration

display. Confirm this setting with the Accept Conf + NCKP0 softkey.

You return to the previous state by switching the axis back to active and confir-

ming this setting with the Accept Conf + NCKP0 softkey.

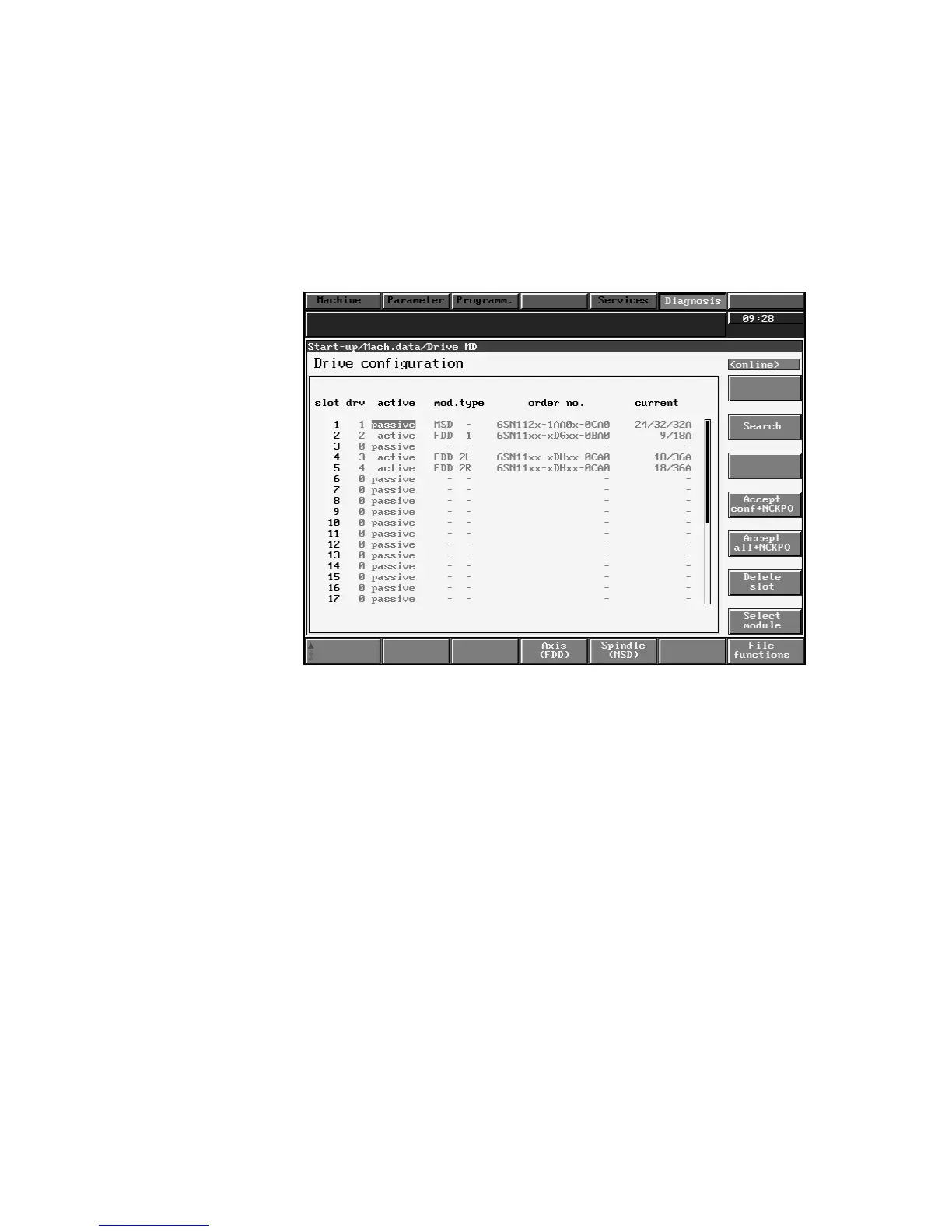

Fig. 5.21

5 Machine Data Dialog (MDD – as from SW 3)

5.9.5 Drive active or passive (as from SW3)
