SINUMERIK 840C (IA)

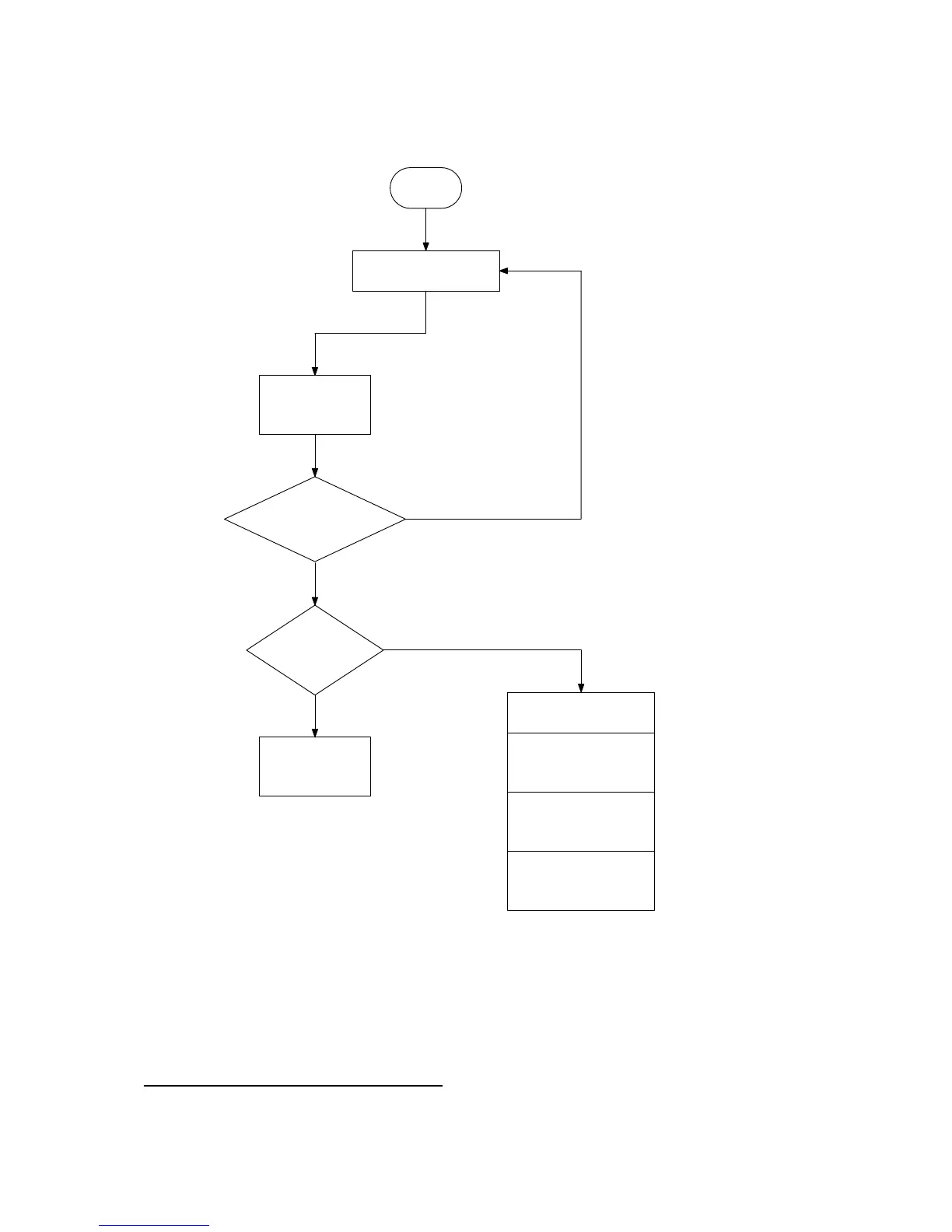

2.7 Deselect general reset mode

General reset mode

Start-up end

softkey

S-U switch

on CSB set to Start-

up position

Yes

S-U

switch on

CSB set

to 0

Yes

NORMAL MODE

S-U switch on

CSB set to 0 and

power on

Password is deleted

PLC is restarted

Power-on routine for

NC software is

running

START

2 General Reset and Standard Start-Up

2.7 Deselect general reset mode

1) in SW 3 softkey end of GENERAL RESET
