09.95



2-15

SINUMERIK 840C (IA)

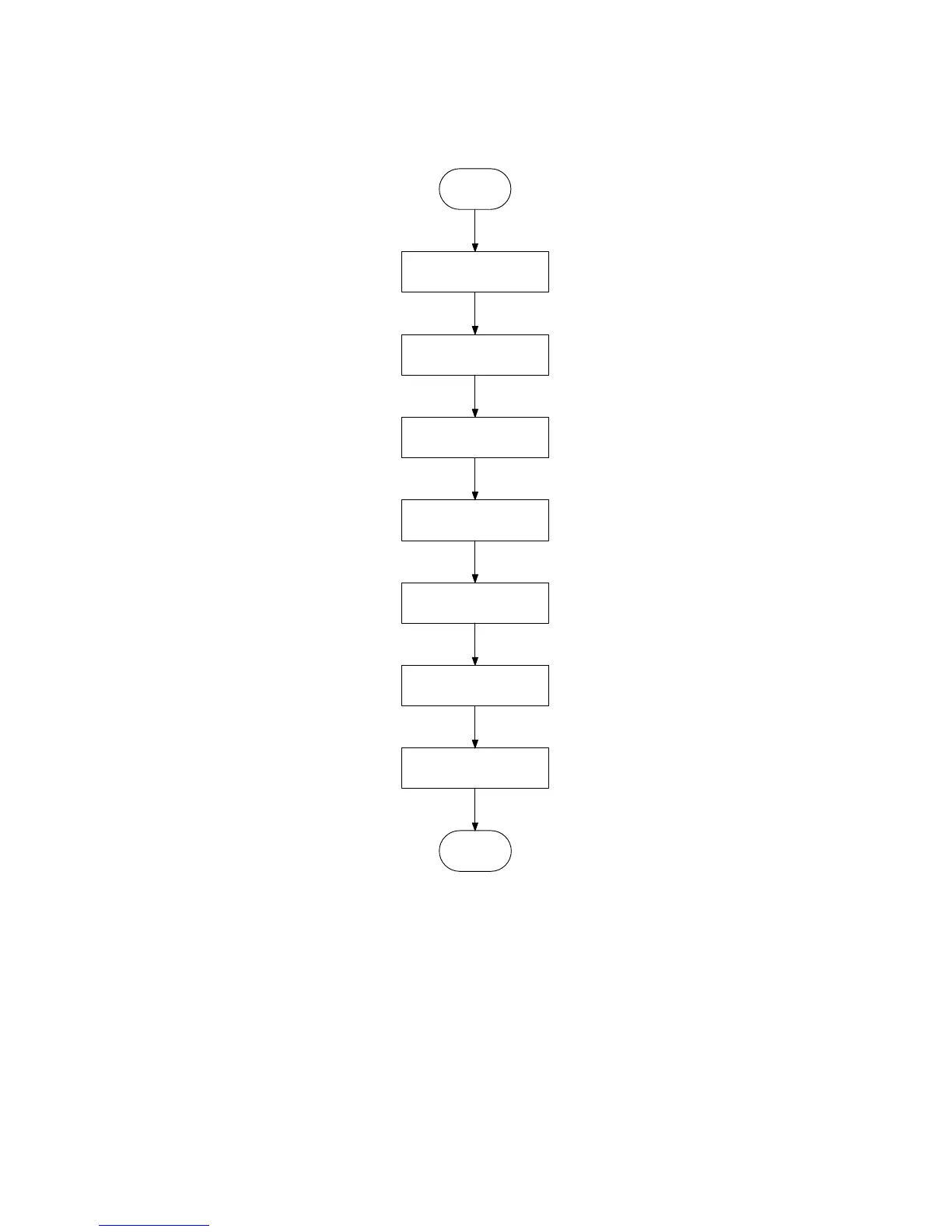

2.10 Standard installation and start-up as flowchart (up to SW 2 only)

START

Voltage test

Functional test

NC-MD

PLC-MD

Axis start-up

Spindle start-up

Test run

Save data to

HD of MMC CPU

END

2 General Reset and Standard Start-Up

2.10 Standard installation and start-up as flowchart (up to SW 2 only)
