SINUMERIK 840C (IA)
2.6 Loading machine data (as from SW 3)
Note Loading the machine data function takes several seconds and is accompanied by
the flashing message “Wait”.
Selection The following softkeys must be pressed: Diagnosis, Startup, Machine data, File
functions:

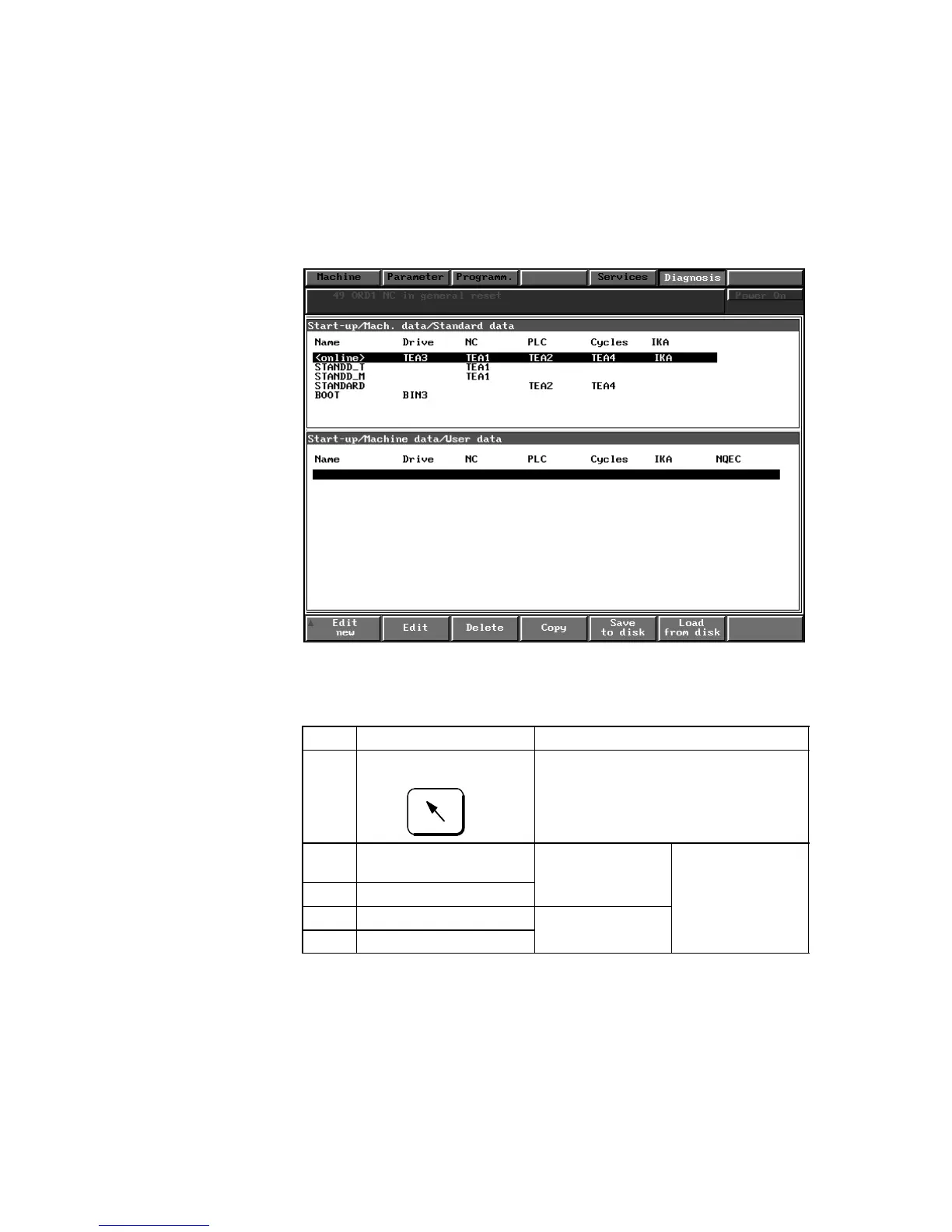

Fig. 2.2
Procedure
Step Operation Comment
1
Activate the standard
data window with the
key
The window has a yellow border
2 Select STANDD_T or
STANDD_M NC-MD
The MD in the NCK
area are cleared
3 SK Load from disk
and assigned stan-
dard values
4 Select STANDARD
dard values
5 SK Load from disk
PLC MD, cycl. MD
Initial start-up On initial start-up (state as supplied from Siemens), no files are available in the
“User data” window(see Fig.).
Subsequent start-up On subsequent start-up, user files from the “User data” window can be loaded
instead of the files STANDD_T, STANDD_M, STANDARD in the “Standard data”
window.
Make sure that no communication is taking place with the digital drive systems. If
the user file contains drive data (TEA3), you must acknowledge the drive-specific
2 General Reset and Standard Start-Up
2.6 Loading machine data (as from SW 3)
