SINUMERIK 840C (IA)
5.2 NC configuration and NC machine data (as from SW 3)
5.2.1 NC configuration
Selection
Diagnosis
Machine
data
Start-up
NC MD
Press the Diagnosis, Start-up, Machine data and NC MD softkeys to call the NC
configuration display.
Note A brief description of the NC configuration and NC machine data is displayed
when you press the info key.
Copy
spindle
Insert
spindle
Copy
axis
Insert axis

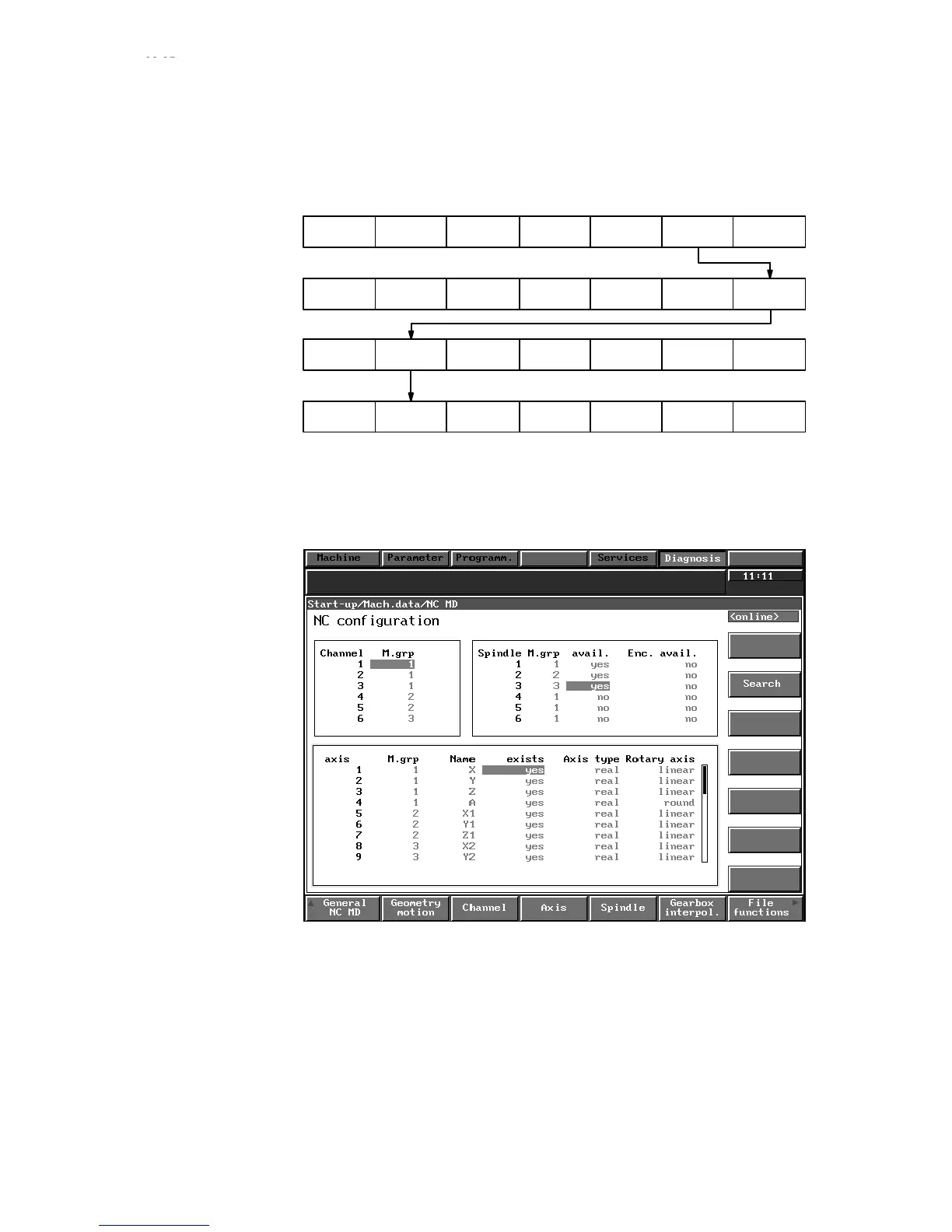

Fig. 5.5
Explanation In this display you enter the current assignments (mode group, name, axis type,
exists) for channel, spindle and axis number. The contents of the display fields
show the settings of the following machine data.
Channel
S Mode group:
The assignment of mode group to channel is determined by the setting in NC
MD 1000 ff (channel valid in mode group).
5 Machine Data Dialog (MDD – as from SW 3)
5.2 NC configuration and NC machine data (as from SW 3)
08.96
To Next Page
