09.95
ï›™
Siemens AG 2001 All Rights Reserved 6FC5197–jAA50
5–43
SINUMERIK 840C (IA)
Motor selection Press the Diagnosis/Start-up/Machine data/Drive MD and Axis (FDD) or Spindle
(MSD) softkeys to call up the display motor/PS data to make the motor selection.
Select the actual motor type with the Enter motor softkey. Once you have selec-
ted all the motors confirm these settings with the Accept all + NCKP0 softkey in
the previous display.

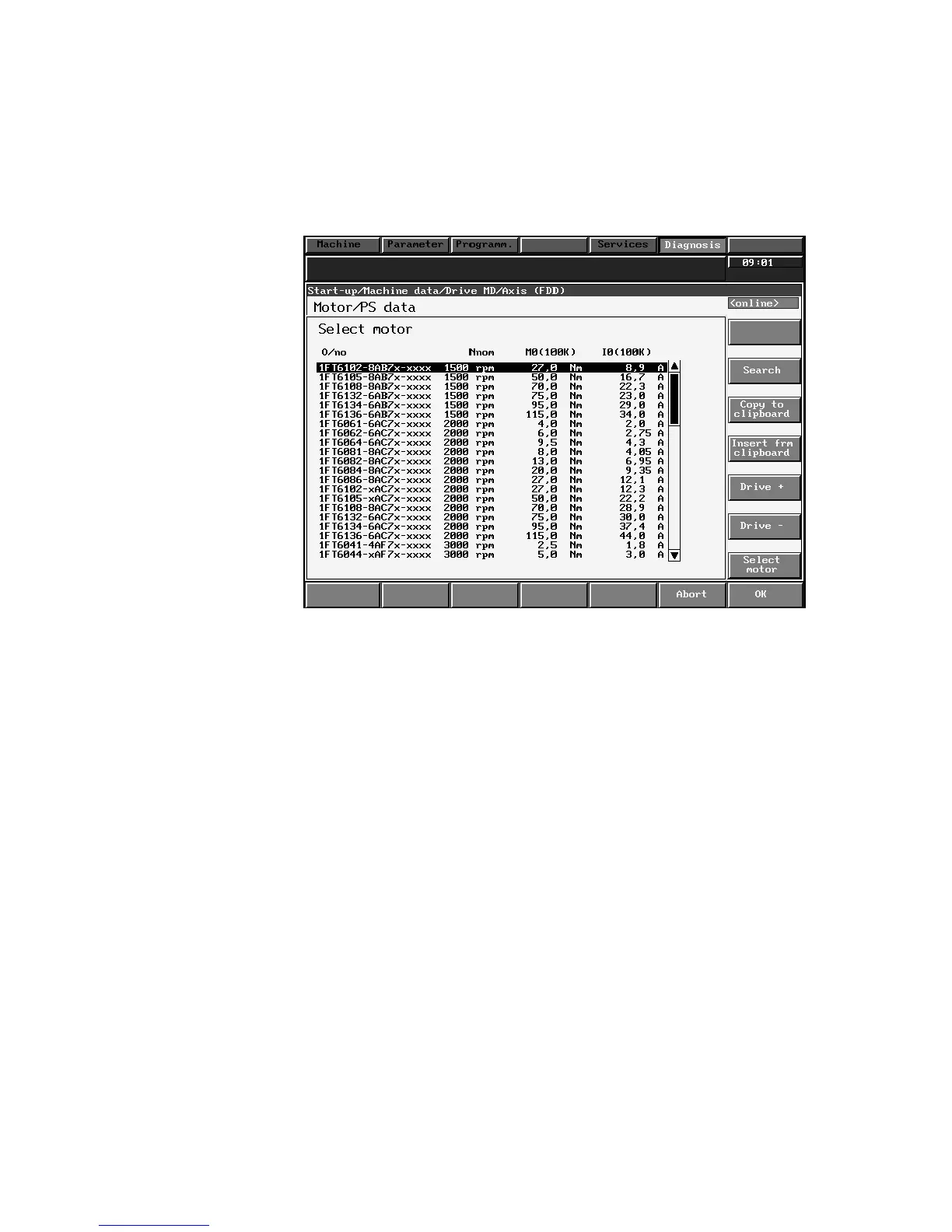

Fig. 5.17
Note Please make sure that you enter the NC MD
S MD 3840, MD 2000 (FDD)
S MD 4600, MD 4000 (MSD)
correctly (assign).
5 Machine Data Dialog (MDD – as from SW 3)
5.9.1 Standard installation of digital drives (SW 3 and higher)
