SINUMERIK 840C (IA)

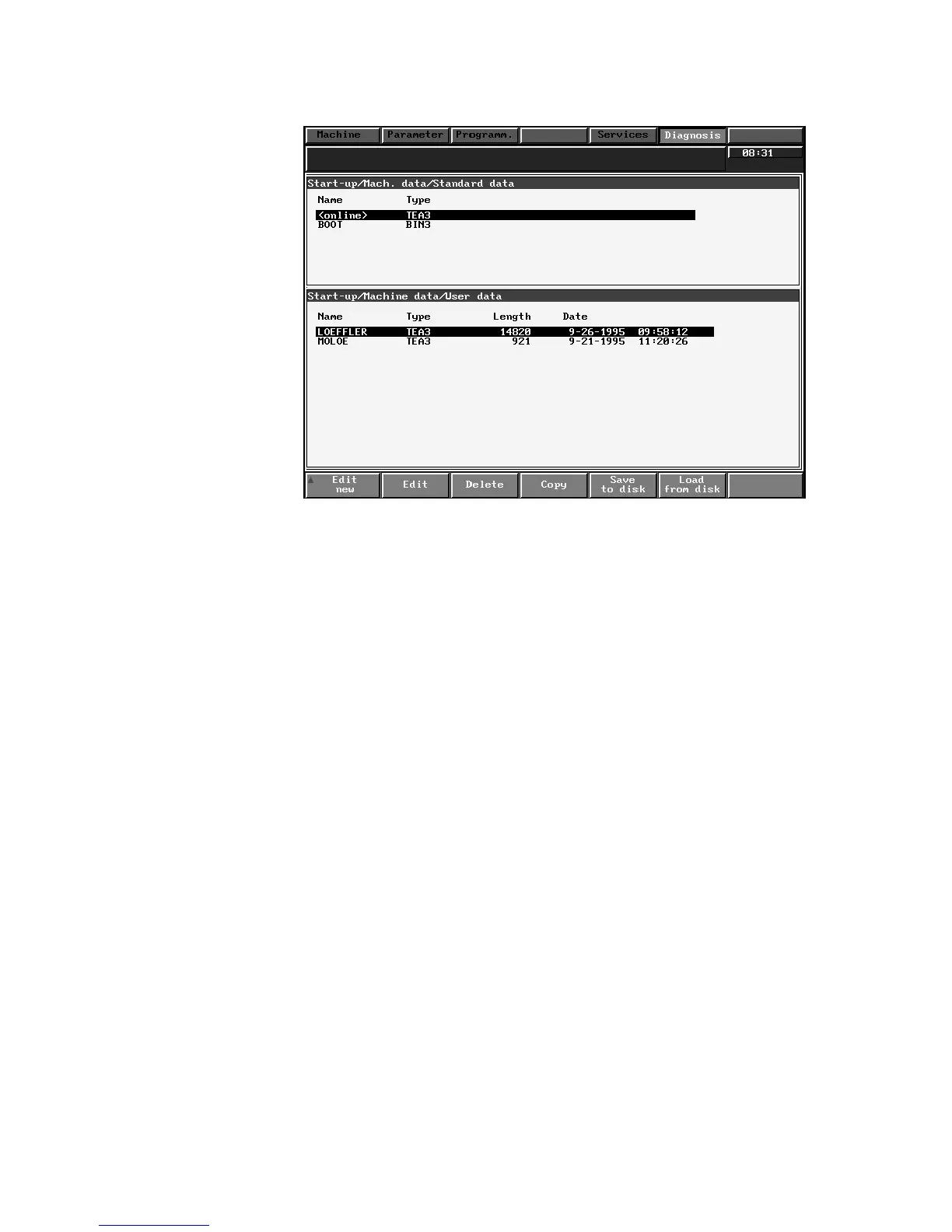

Fig. 5.14

Explanation The functions of the individual softkeys are the same as for the first level.

Notes With the Save to disk softkey, you can choose between Conf (8 drive configu-

ration only) and All.

With the Load from disk softkey, you can choose between Conf (8 drive config-

uration only) and Drives (8 drive MD without configuration), i.e. loading of a

TEA3 file (drive) in the 2nd level is always carried out in 2 stages (see drive

installation/start-up).

5 Machine Data Dialog (MDD – as from SW 3)

5.8.4 File functions (sequence of operation – as from SW 3)
