6 NC Machine Data (NC MD), NC Setting Data (NC SD) 12.93

6.12.1 NC setting data (NC SD)

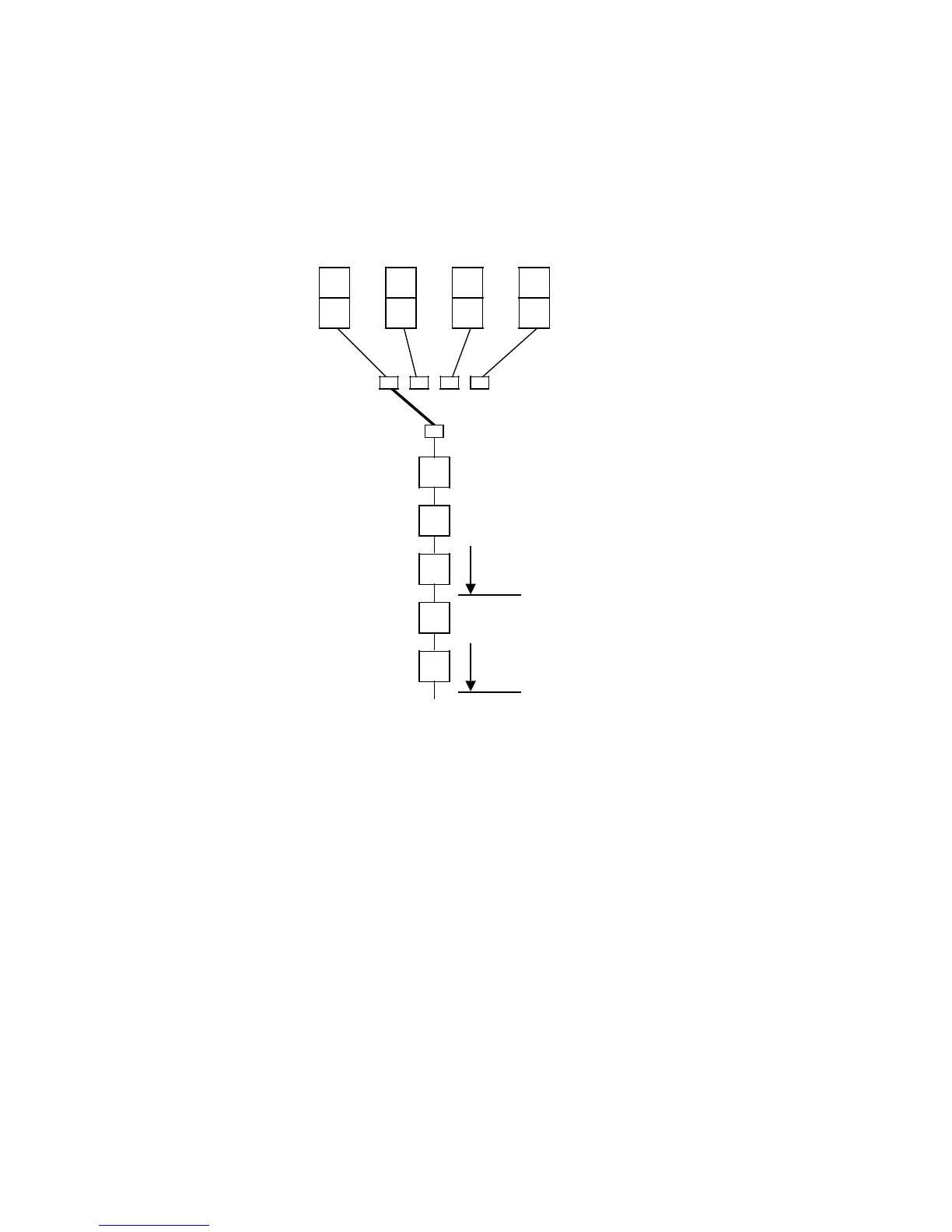

Zero offsets (ZO)

G54 1st settable zero offset (coarse + fine)

G55 2nd settable zero offset (coarse + fine)

G56 3rd settable zero offset (coarse + fine)

G57 4th settable zero offset (coarse + fine)

Suppression with G53

(see also NC MD 5007 bit 1)

Suppression with @ 706

Fine setting

Coarse setting

G54

1st 2nd 3rd 4th

settable zero offset

G55 G56 G57

1st programmable zero offset (G58)

2nd programmable zero offset (G59)

External zero offset (from PLC)

DRF offset (with handwheel)

PRESET offset

Initial setting for programming is G54!

G58 1st programmable ZO

G59 2nd programmable ZO

external ZO external ZO from PLC

The values are transmitted from the PLC via the external data input. The

values can only be deleted from the PLC or with the softkey ”UMS format”.

6–218 ©

SINUMERIK 840C (IA)
