09.95



9–9

SINUMERIK 840C (IA)

Note With SW 4 and higher, the Contr.para FDD and Contr.para MSD softkeys have

been combined under the Contr.para drive softkey with one exception: Under

the circularity test function, the softkeys have remained as they were in SW 3.

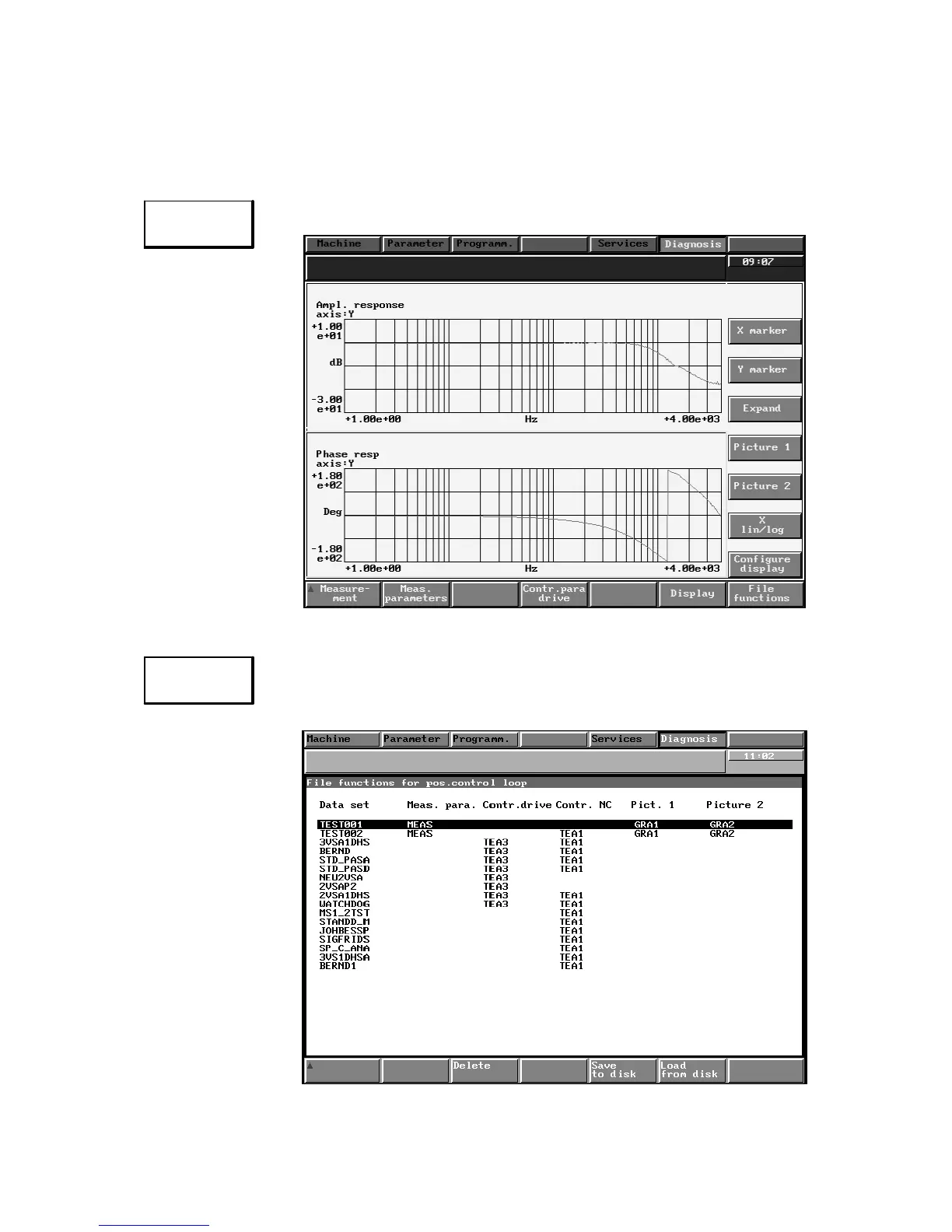

You can call up the graphic display of measurement results with this softkey.

Fig. 9.3

You can enter the file function area by selecting this softkey.

Example for position

control loop

Fig. 9.4

9 Drive Servo Start-Up Application (as from SW 3)

9.1.2 Softkeys
