SINUMERIK 840C (IA)

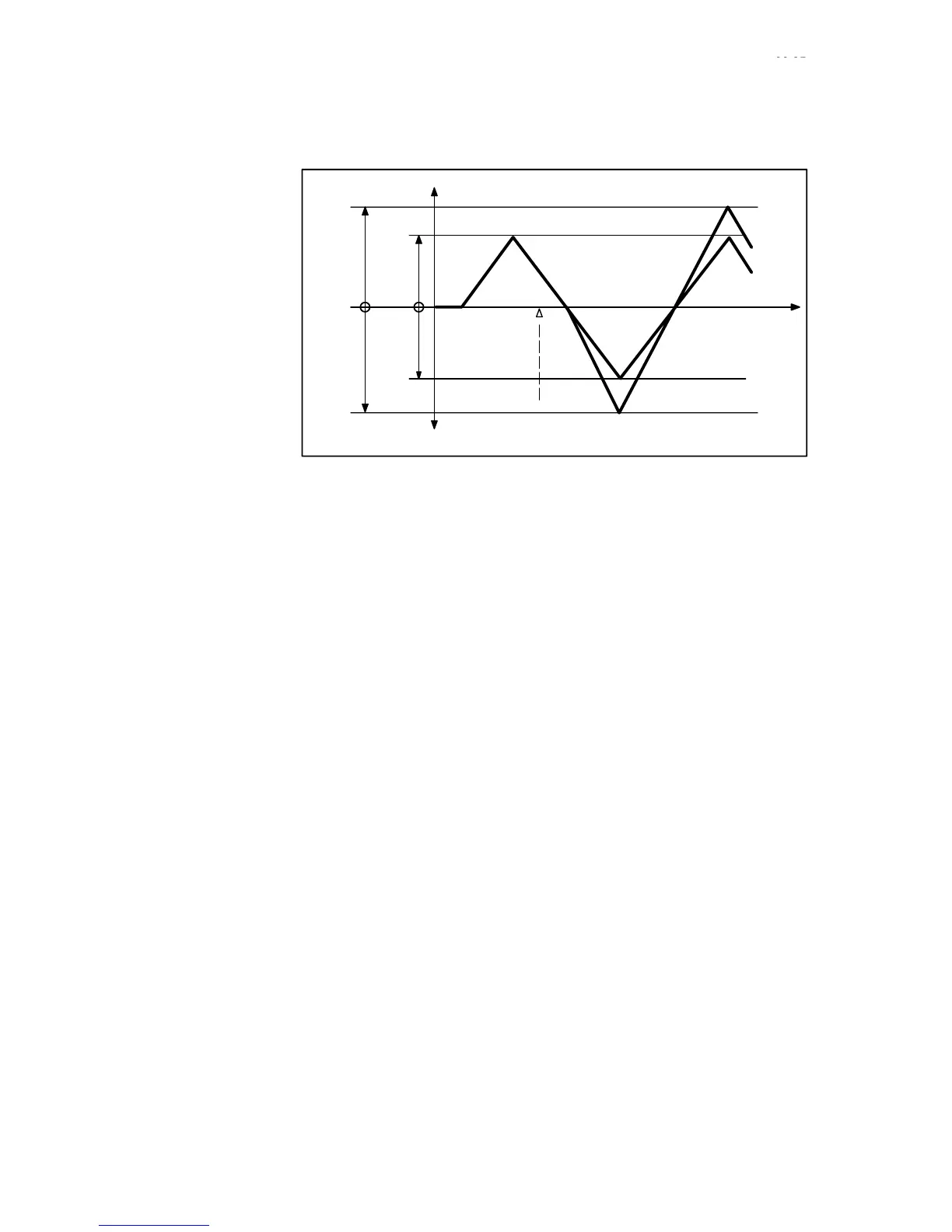

D Effect of scaling on the signal waveform

–A

nset

0.65 A

Fig. 9.13

Conditions Operating mode : Speed setpoint (position controller

cycle)

Signal type : Sawtooth

E3 : Change in scaling value by

user (e.g. from 65% to 100%)

A : Amplitude (+/–)

Explanation A new scaling value is input via the Start softkey at instant in time E3. The resul-

tant increase in amplitude is not input as a sudden step change, but is delayed

via a filter.

9 Drive Servo Start-Up Application (as from SW 3)

9.3.3 Signal waveforms of function generator (as from SW 3)
