09.95



9–47

SINUMERIK 840C (IA)

Counter 2

Counter 1

III IV

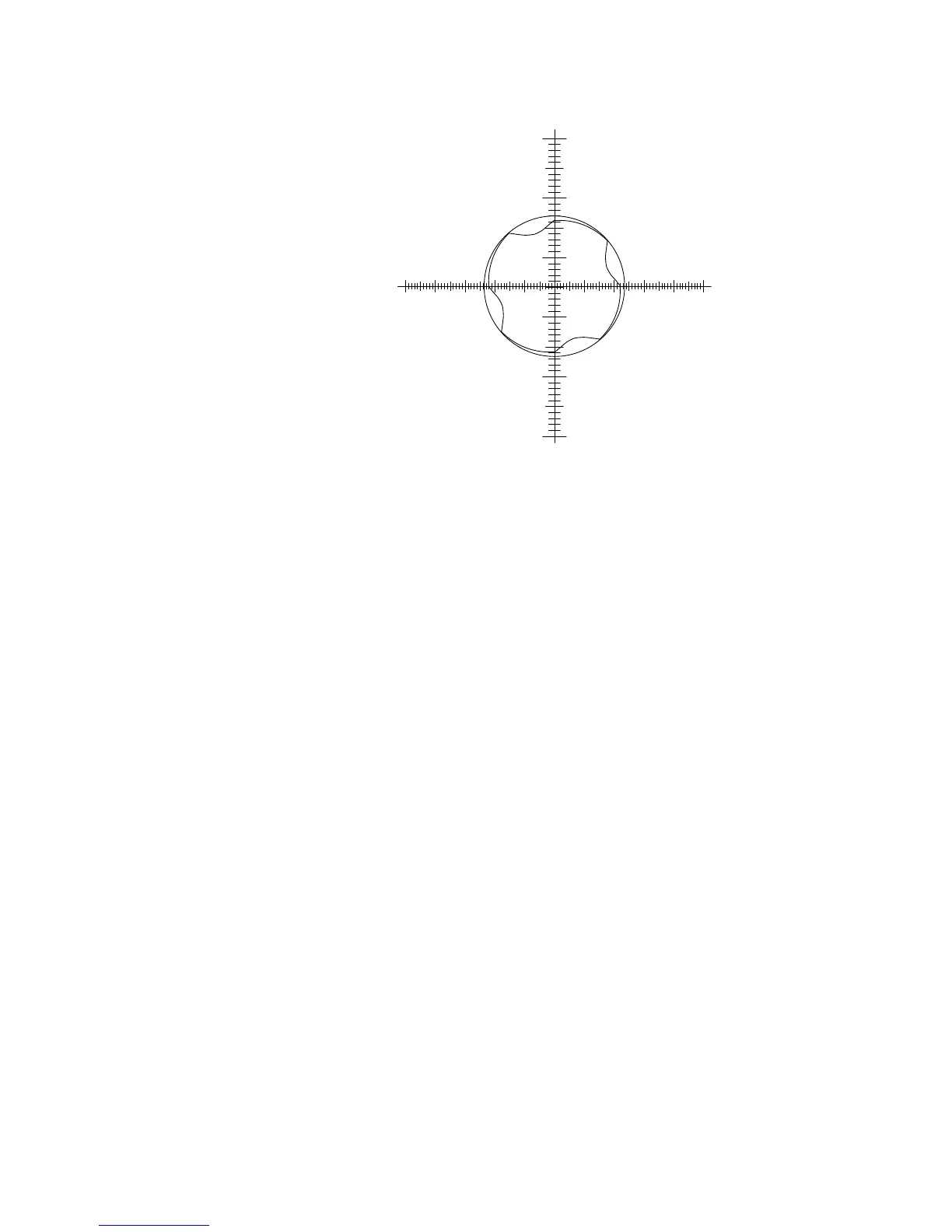

Fig. 9.24 Compensation time constant too large

If it is not possible to find a uniform compensation time constant for the various

radii and velocities, the average value of the derived time constants is used.

If it has been possible to achieve a good result with these time constants and the

constant compensating amplitude across the whole working range, i.e. for all re-

quired radii and velocities and for positioning, characteristic adaptation

(MD 1804*, bit 7) is no longer needed.

9 Drive Servo Start-Up Application (as from SW 3)

9.5.3 Conventional quadrant error compensation (as from SW 2)

Default Chapter1
