Service

display

Start-up

Alarm log 1

Alarm log 2

09.95



4–5

SINUMERIK 840C (IA)

Fig. 4.3

Default setting: All alarms and messages are included.

Default setting: All reset and power ON alarms are included.

Note: Both files are configured in the CONFIG file.

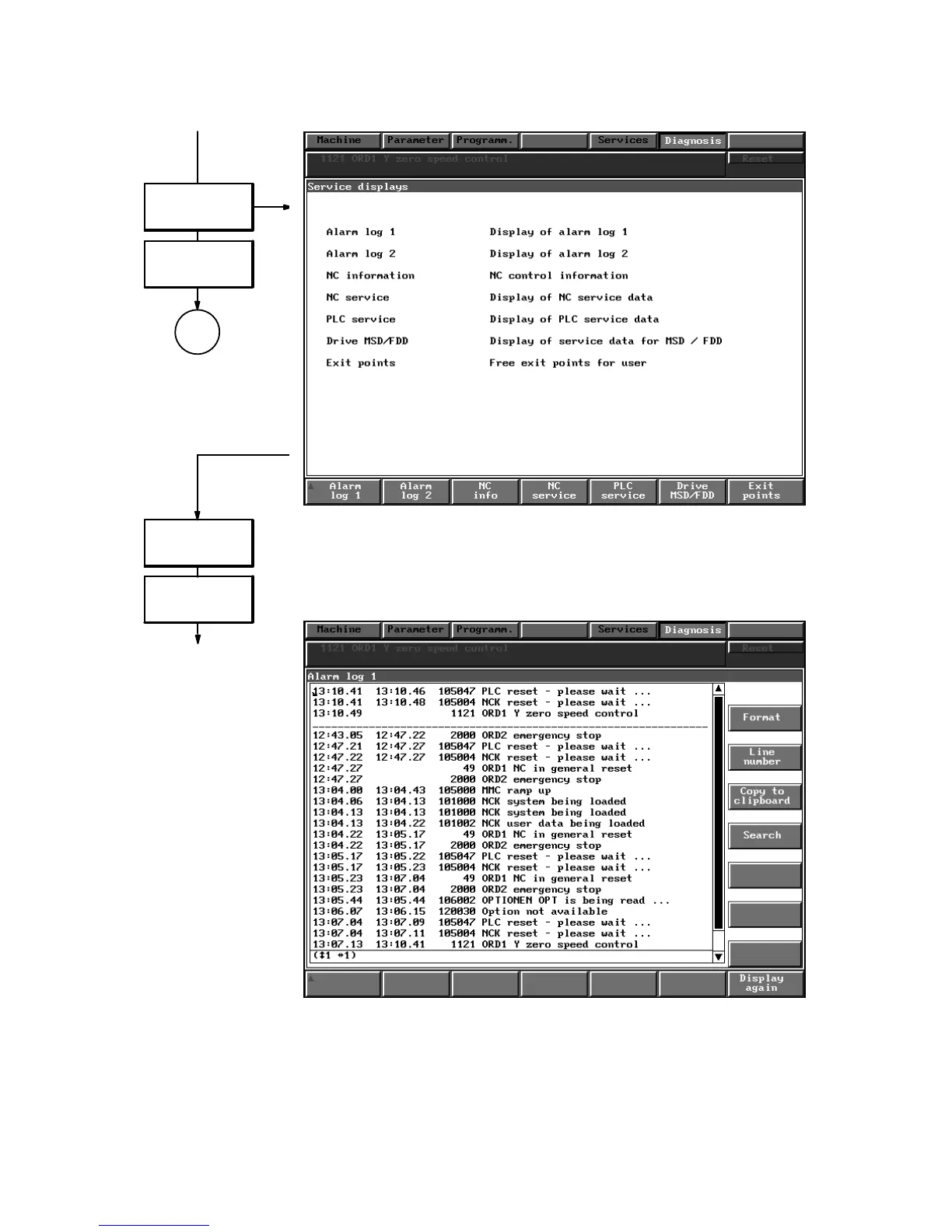

Fig. 4.4 Alarm log 1

4 MMC Area Diagnosis

4.1.4 Selection of the diagnosis area
