12 Functional Descriptions 01.99
12.6.3 The transformation data set
NC MD 5060 to 5069 1st transformation data set
NC MD 5070 to 5079 2nd transformation data set
.
.
.
NC MD 5130 to 5139 8th transformation data set
Conditions for a transformation data set
a) All axes and the channel must be assigned to the same operating mode group.
b) The transformation option must be available.
c) The transformation data are taken over internally by the control at restart (warm restart).
Definition errors cause Alarm 3087 to be output. The incorrect machine data is coded in
the block number in the alarm text.
d) NC MD 564* Bit 6 must be set for all fictitious axes.
e) The axis names of the real and fictitious axes of a transformation data set should not be
repeated. Using the same axis name with a different extended address is permitted.
Example: 0000 0010=Z
0001 1001=Q1

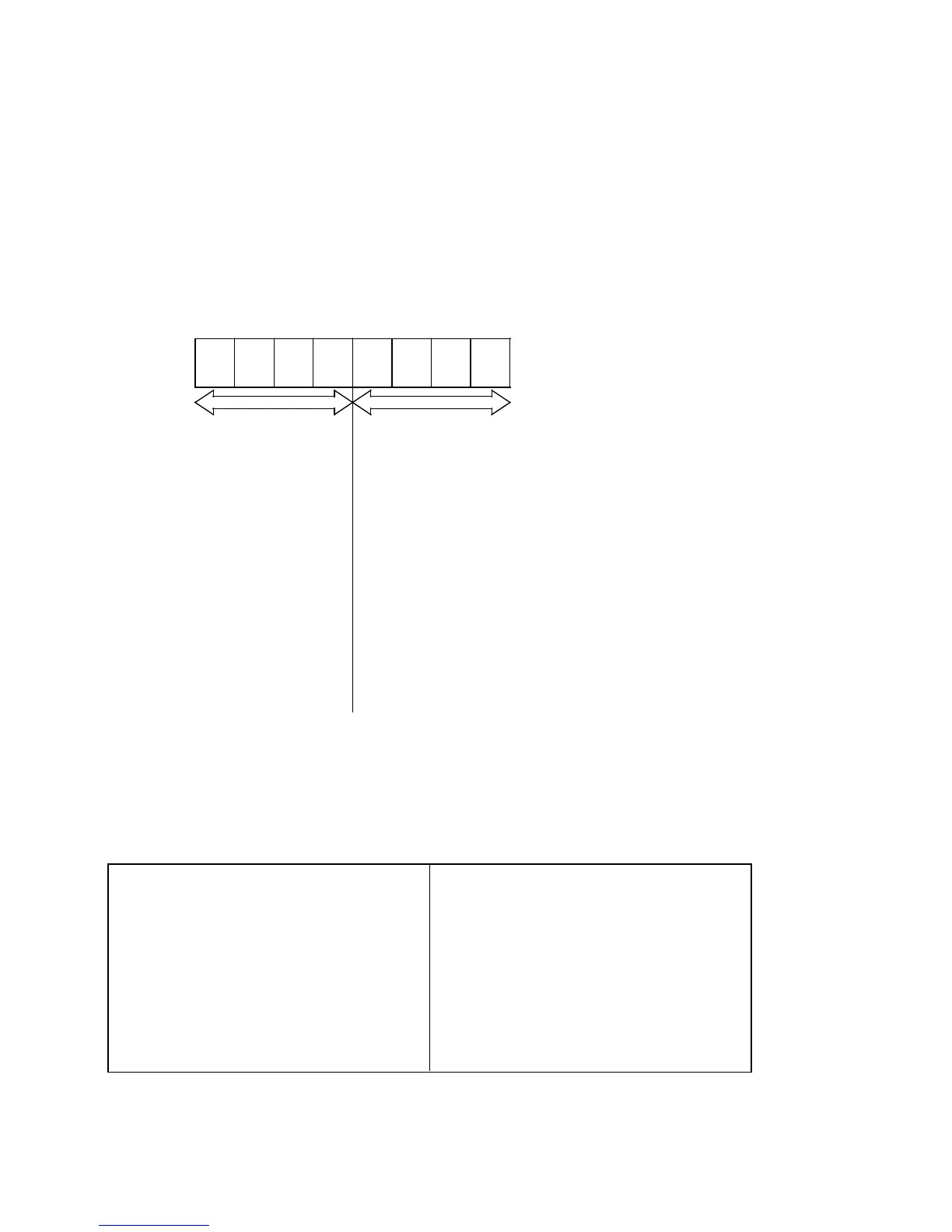

Bit No.
extended address
(address number)
key:
blank = 0000
1 = 0001
2 = 0010
3 = 0011
4 = 0100
5 = 0101
6 = 0110
7 = 0111
8 = 1000
9 = 1001
10 = 1010
11 = 1011
12 = 1100
13 = 1101
14 = 1110
15 = 1111
address name
key:
X = 0000
Y = 0001
Z = 0010
A = 0011
B = 0100
C = 0101
U = 0110
V = 0111
W = 1000
Q = 1001
E = 1010
7 456 3 2 1 0
Legal names for axes, angles, chamfer and radius
A
unassigned address
B
unassigned address
C
unassigned address
D tool offset number
E
unassigned address
F feed
G G function
H H function
I interpolation parameter
J interpolation parameter
K interpolation parameter
L subroutine
M M function
N subblock
O danger of confusion with 0 (zero)
P subroutine - number of passes
Q
unassigned address
R arithmetic parameter
S spindle speed, S function
T tool
U
unassigned address
V
unassigned address
W
unassigned address
X
unassigned address
Y
unassigned address
Z
unassigned address
12–22 © Siemens AG 1992 All Rights Reserved 6FC5197- AA50
SINUMERIK 840C (IA)
