peak detect
– function which allows to detect and visualize peak values in measured
signal. Detection of the peak value can be done if the measured signal raises and
drops (or the opposite) by value, which is settable by the user. Next, the detected
value can be hold for settable by user period of time. If during the time when peak is
detected, new peak is detected, then the peak value is updated and the time of hold
is reset. When this time will elapse, or no peak is detected, the device will display
current value of the signal (see
Fig. 7.37
).
After selecting this option,
Filter conf.
button will appear which contains
configuration parameters of this filter:
•
Mode
– allows to choose filter work mode,
◦
peaks
– function detects highest values in logical channel
◦
valleys
– function detects lowest values in logical channel,
•
Value
– the peak will be detected when signal value will drop or rise for value in
this parameter,
•
Hold time
– the time which the detected peak will be hold, under condition that
there will be no new peak detected,
•
Reset mode
– turns on and off reset of the peak value from logical channel,
◦
disabled
– reset form logical channel is off,
◦
from log. channel
– allows to select a logical channel, in which value that
is higher than 0, will reset the peak detect,
•
Reset source
– it contains the logical channels list, where selected on will be
for the peak detect source of reset,

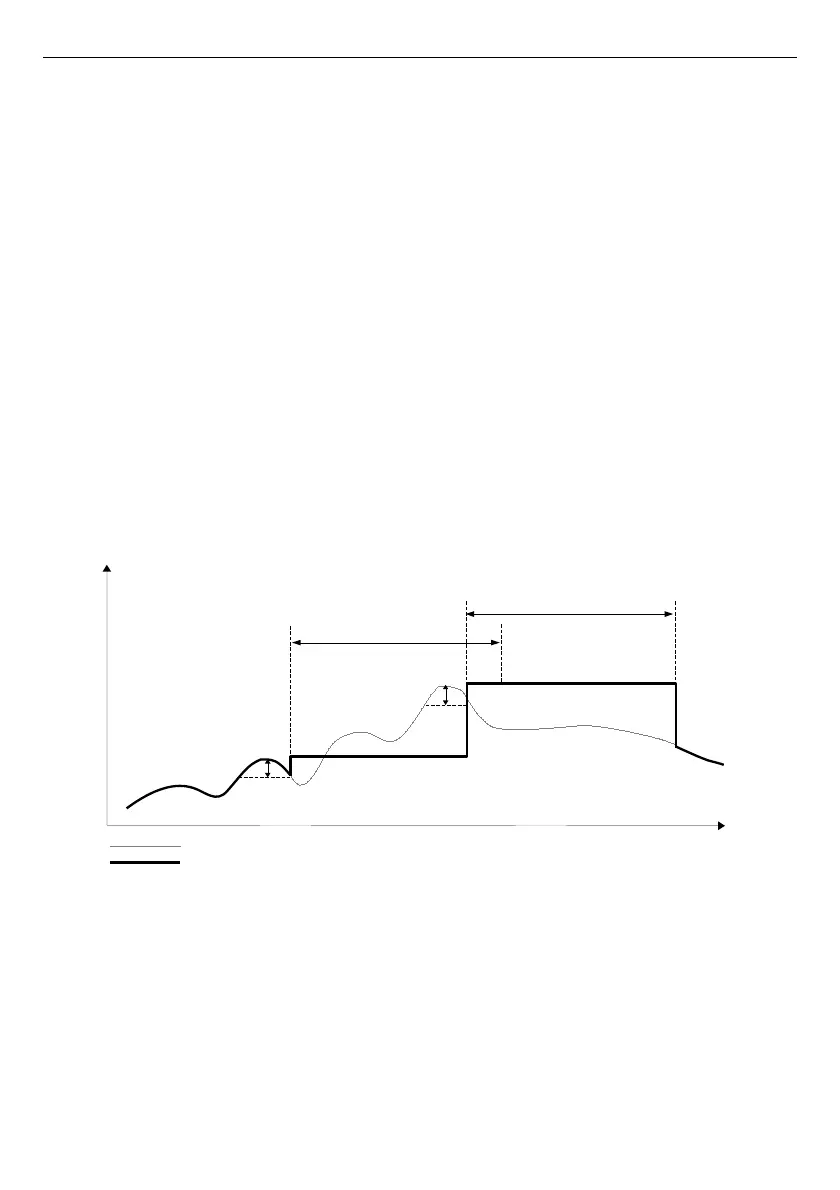

Fig. 7.37. Process of peak detection
74
”Hold time”
measure
time
”Hold time”
”Value”
”Value”
real measurement result
display value
