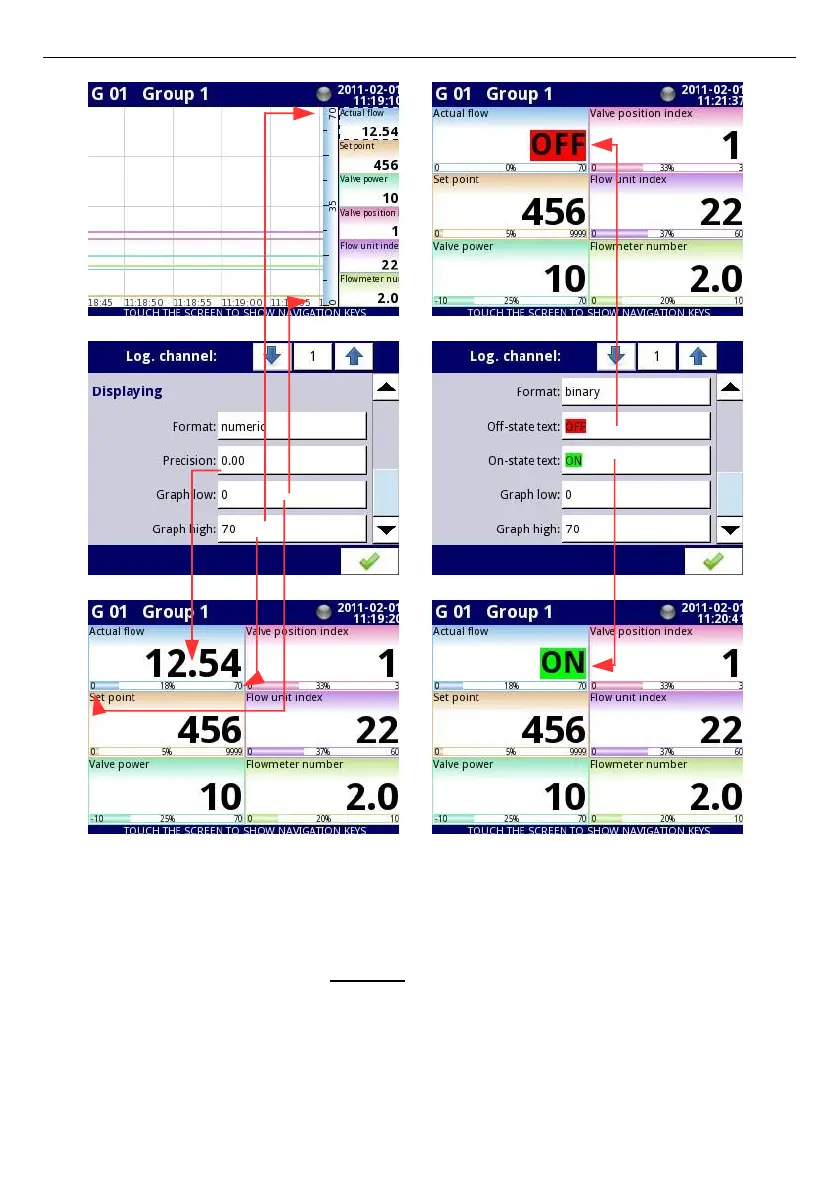

Fig. 7.39. Input channels menu – 2 different kinds of Displaying parameters
To calculate percentage which will be displayed on the indicator, the device is using
following equation:
where:
R – result
V – value in logical channel
Lo – Graph low value in logical channel
Hi – Graph high value in logical channel
77
R=
V −Lo
Hi−Lo
⋅100%
