User Manual For - CONTROLLER/DATA RECORDER MultiCon CMC-99/141
Example of a number representing the value of the logical channel:
1 2 5 6 2 8 0 2 2 1 5 8 6 4 . 8 7 3
part 1 of 3 part 2 of 3 part 3 of 3
part 1 of 2 part 2 of 2
all digits
(limited ability to display up to
5 digits plus decimal point on the
screen)
– Available options for
Digits
parameter are:
•
all digits
– display all parts. With this option the number is limited only to
possibilities of the display;
•
part 1 of 2
- display the higher part of the number on the screen,
•
part 2 of 2
– display the lower part of the number on the screen,
•
part 1 of 3
– display the highest part of the number on the screen,
•
part 2 of 3
- display the middle part of the number on the screen,
•
part 3 of 3
- display the lowest part of the number on the screen,
For time Format in logical channel only 6 digits, three special signs (colons, dot), but not
more than eight signs and minus. Using Digits and Precision parameters, the device will
display time from youngest unit with maintaining all restrictions, see
Fig. 7.38
.
Minus signs is displayed only before the highest unit of the
Time Pattern
. When the
highest unit can not be displayed in logical channel, minus sign will not appear and value in
this channel will be considered as a positive value.

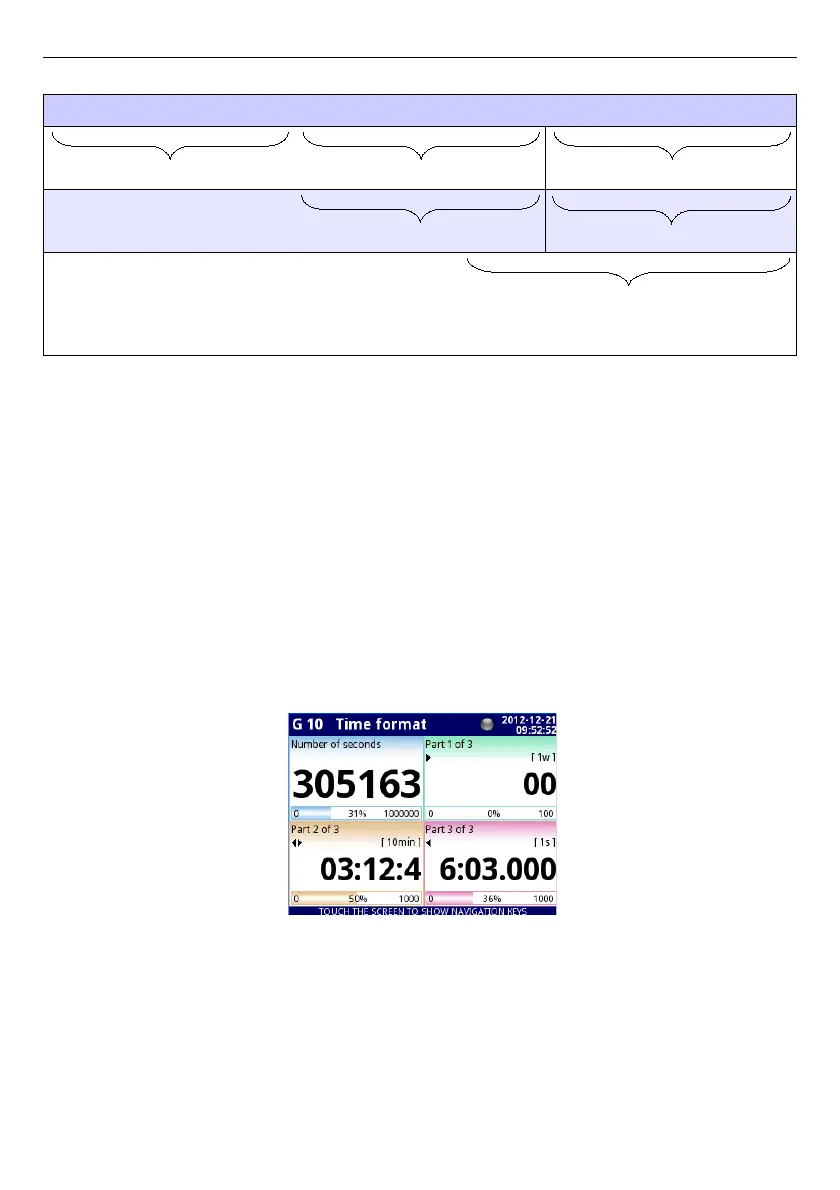

Fig. 7.38.Example of time Format view with Precision 0.000 and standard Time Pattern
[ww:dd:hh:mm:ss]
–
Graph
low - minimum range value for graphs, bars, needle dials and percentage
bars (see
Fig. 7.39
),
–
Graph high
- maximum range value for graphs, bars, needle dials and percentage
bars (see
Fig. 7.39
),
76
