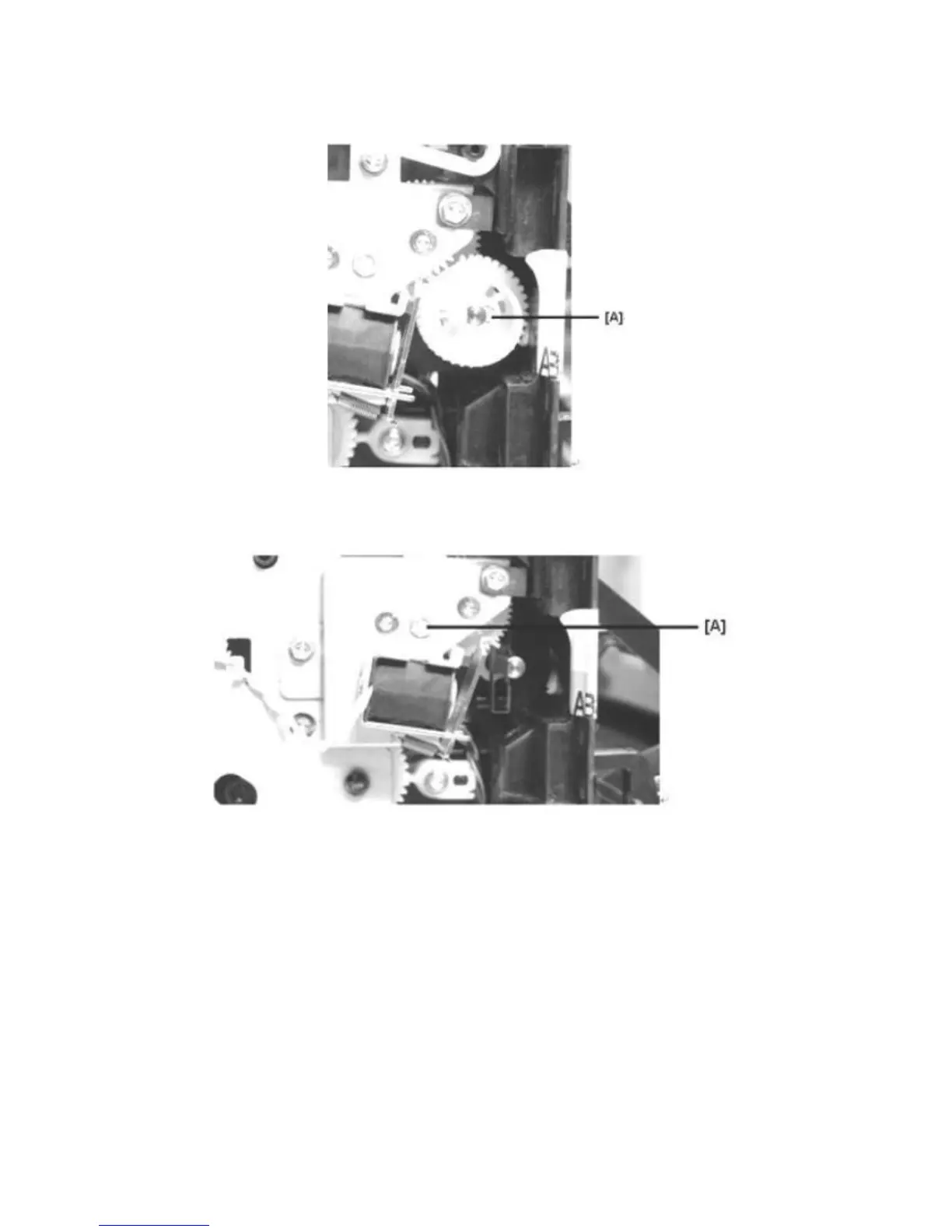

6. Remove the screw [A] on MPT solenoid.

7. Remove the solenoid.

8. Spread the center of the link hook [A] connected to front cover to unlock the link.
