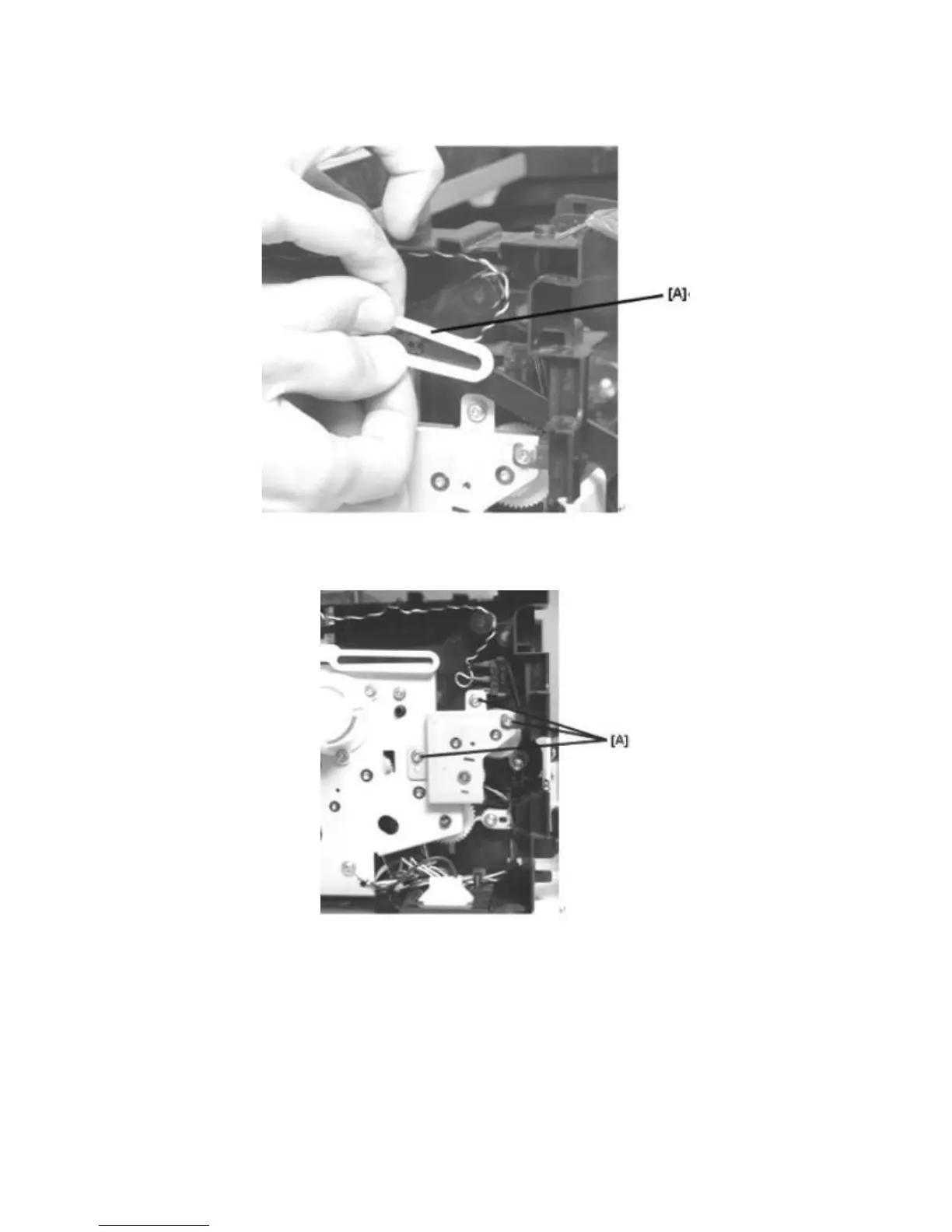

9. Remove 3 screws [A] on the sub-bracket.

10. Remove the sub-bracket.

11. Remove link gear [A] and 4 screws [B] on main driving gear.
