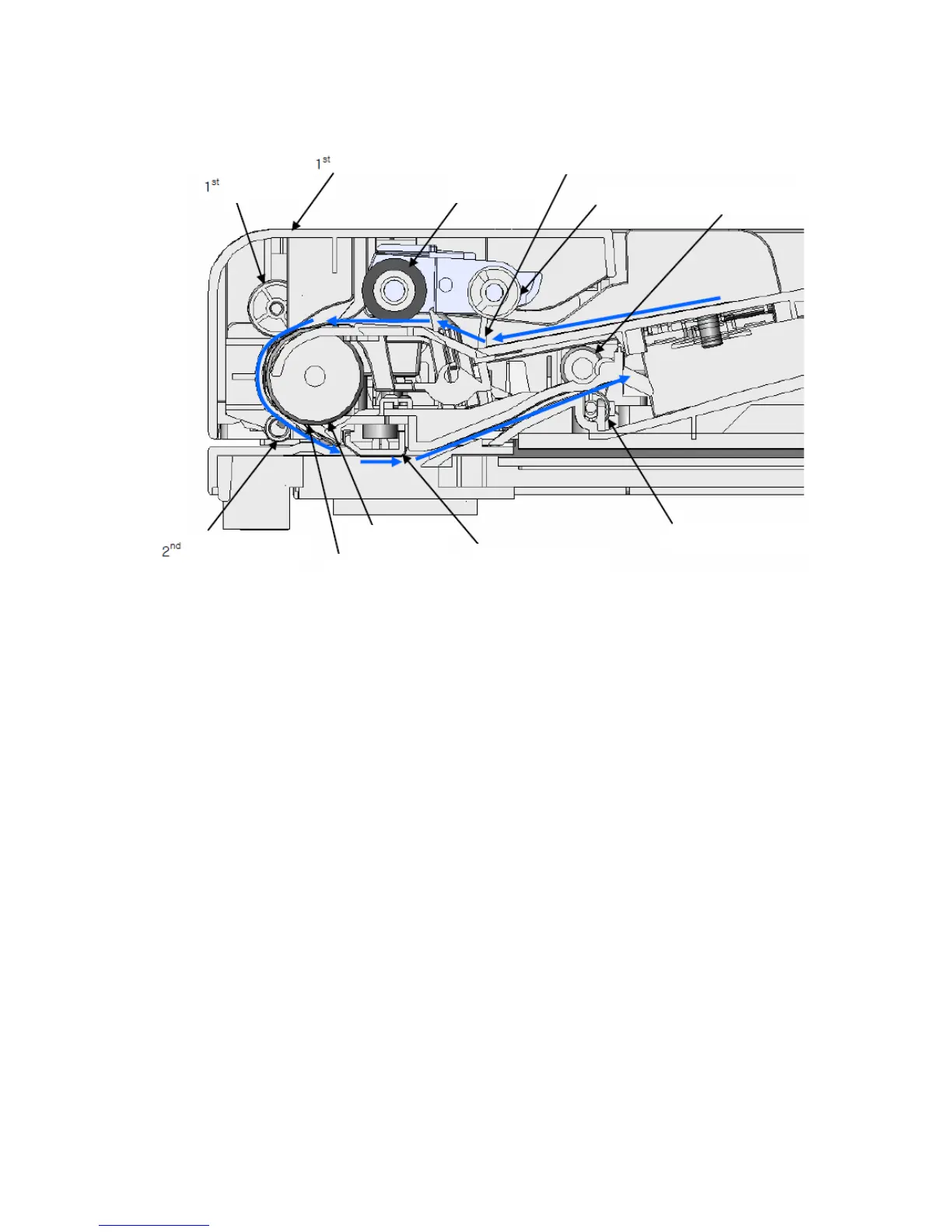

a) When paper’s bottom did not enter 1
st
idle roller (A5~Legal)
- Open ADF’s top cover.
- Remove pick up Ass’y.
- Slowly pull the paper’s bottom to right to remove the jammed paper.
- Reassemble pick up Ass’y.
- Close ADF’s top cover.
b) When paper’s bottom got near to pressure plate (A5~Legal)
- Open entire ADF unit.
- Slowly pull the paper’s bottom to left to remove the jammed paper.
- Close entire ADF unit.
c) When paper’s bottom is in between 2
nd
idle roller and pressure plate
- Open entire ADF unit.
- Open ADF’s top cover. (Idle roller’s pressure gets released)
- Hold both sides of paper near pressure plate with hands and pull the paper’s bottom to right to
let paper’s bottom to appear.
- Hold paper’s bottom with hands and pull it to left to remove the jammed paper.
- Close ADF’s top cover.
- Close entire ADF unit.
d) When paper’s bottom passed pressure plate (A5~Legal)
- Put hands to paper guide’s bottom and remove the jammed paper to right side.
