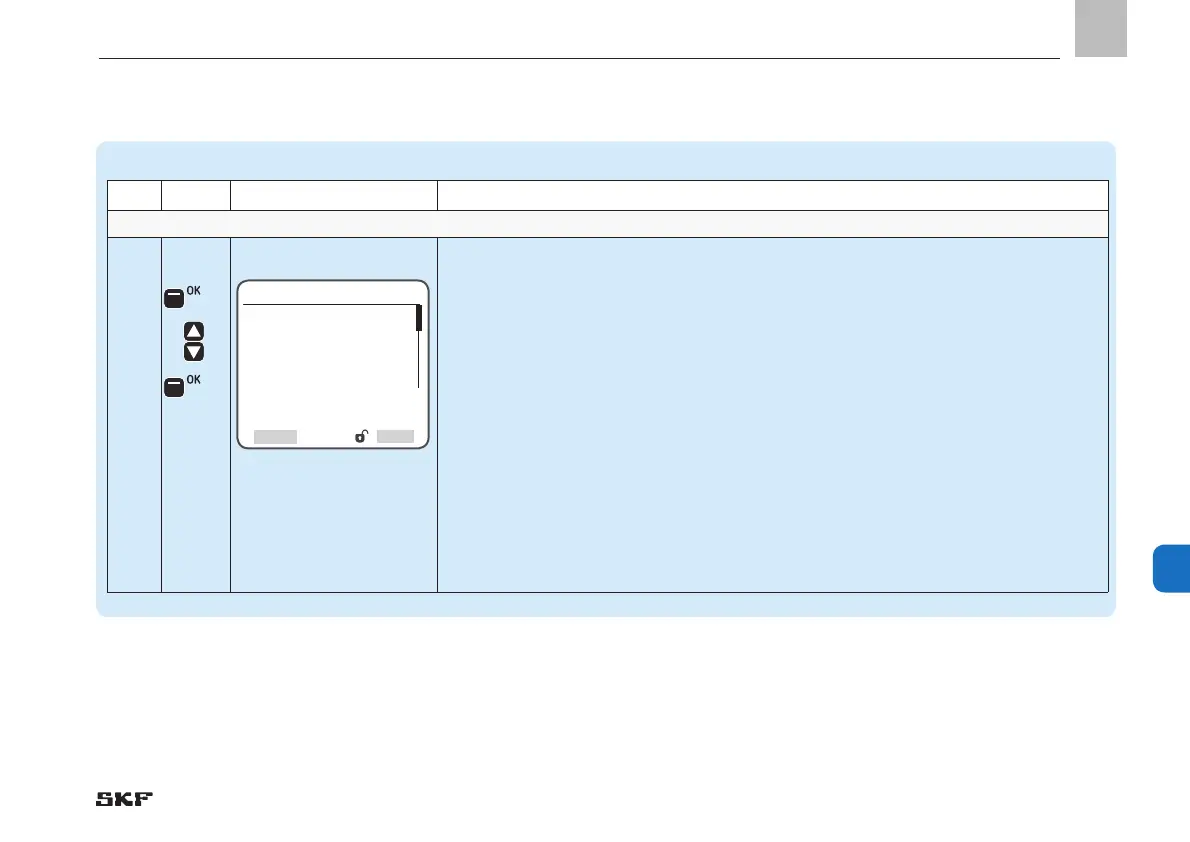

11. System configuration
Pump settings => Pump settings => Motor Protection
Step Key Display Description
Motor Protection Connection settings for the external auxiliary contact of the motor circuit breaker
6
• Press <OK control key>
)You will enter the Motor Protection Settings menu
The following settings are available:
o normally closed / normally open / disabled
• Press <Select control key>
• Use <down/up arrow key> to make a menu selection
• Press <Save control key>
With normally closed and normally open contacts:
• Press <down arrow key>
• Press <Select control key>
• Use <down/up arrow key> to enter the value
• Press <Save control key>
• Press <Back control key>
Motor Protection
Motor Protection Type
[normally open]
Input No.
[ 0.00 ] DI
SelectBack
EN
119
