UT1/DT1 MAGNET DESCRIPTION – TAPE
The Emergency Terminal Stopping magnets provide an indication that
the car is near the top terminal (UET) or bottom terminal (DET).
Orientation of the North/South magnet is very important since this signal
is driven by a relay within the selector as it passes over the magnet pairs.
Improper orientation will cause the signals to not function properly and
the car to fail the Learn Procedure.

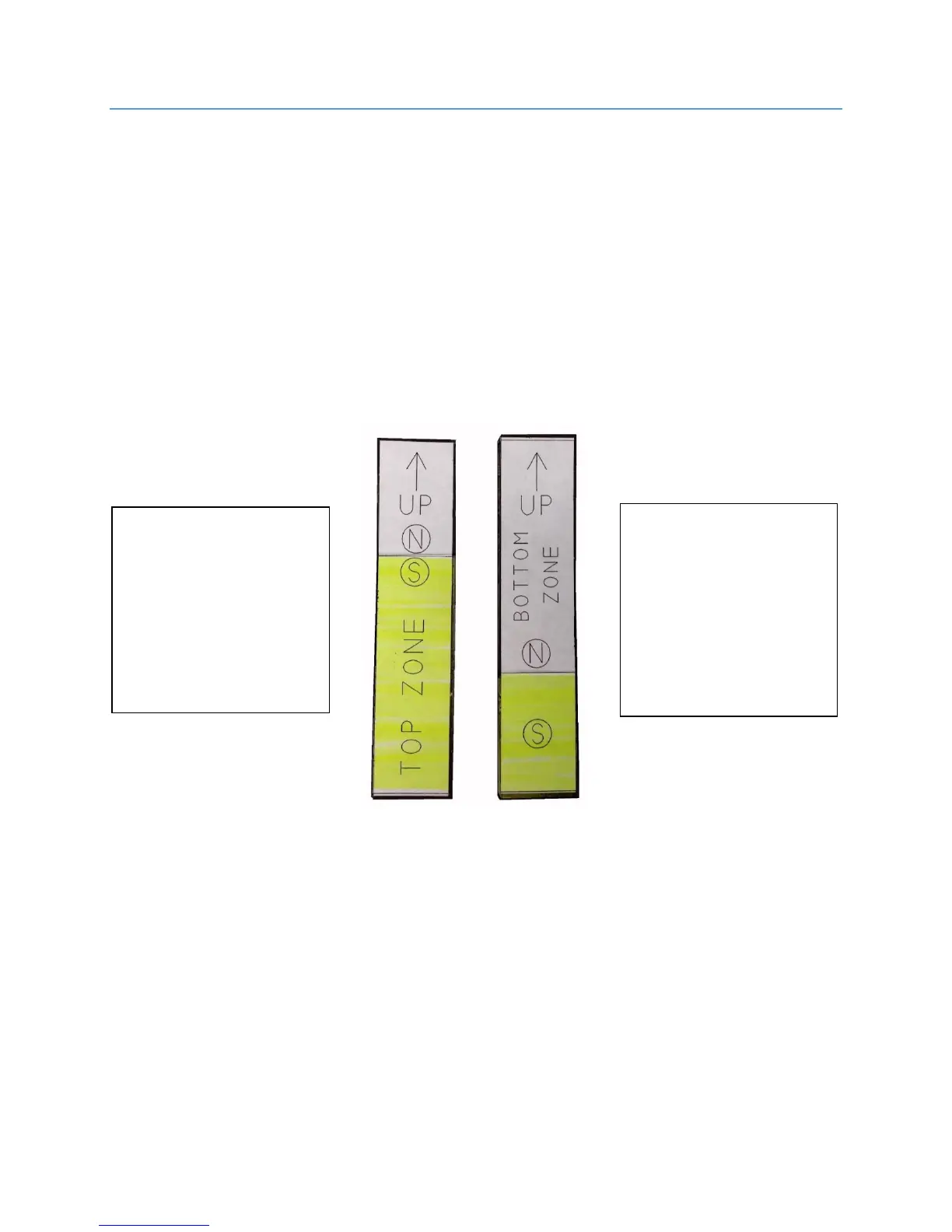

UT1
UT1 is a 3.5 inch
South magnet
above a 1.5 inch
North magnet.
DT1
DT1 is a 3.5 inch
North magnet
above a 1.5 inch
South magnet.
