Smartrise F220

25

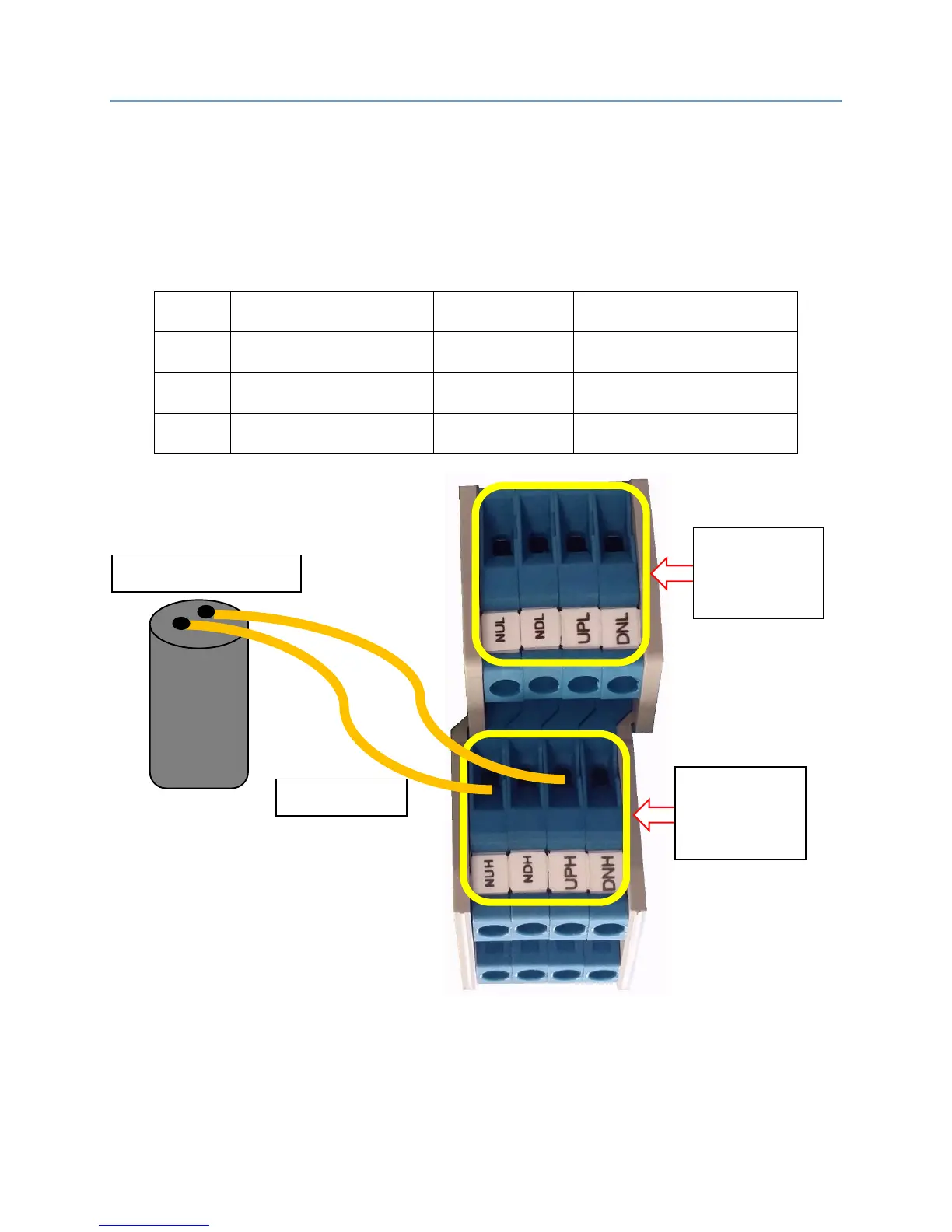

VALVE WIRING
Wire the valve solenoids to the Machine Room DIN Rail terminals.
One lead of each valve solenoid goes to the “N” UP/DN (Neutral) DIN
Rail terminals and the other lead goes to the corresponding High/Low
UP/DN DIN rail terminals. See drawings for connection reference.
Refer to “Sheet 4 – Drive and Motor” for voltage requirements.
UPH
Up High valve coil
NUH
Neutral Up High
UPL
Up Low valve coil
NUL
Neutral Up Low
DNH
Down High valve coil
NDH
Neutral Down High
DNL
Down Low valve coil
NDL
Neutral Down Low
Valve Leads
UPH / NUH
DNH / NDH
Valve Leads
UPL / NUL
DNL / NDL
Valve Leads
UP High Valve Coil
