IP8300 SELECTOR, TAPE AND MAGNETS

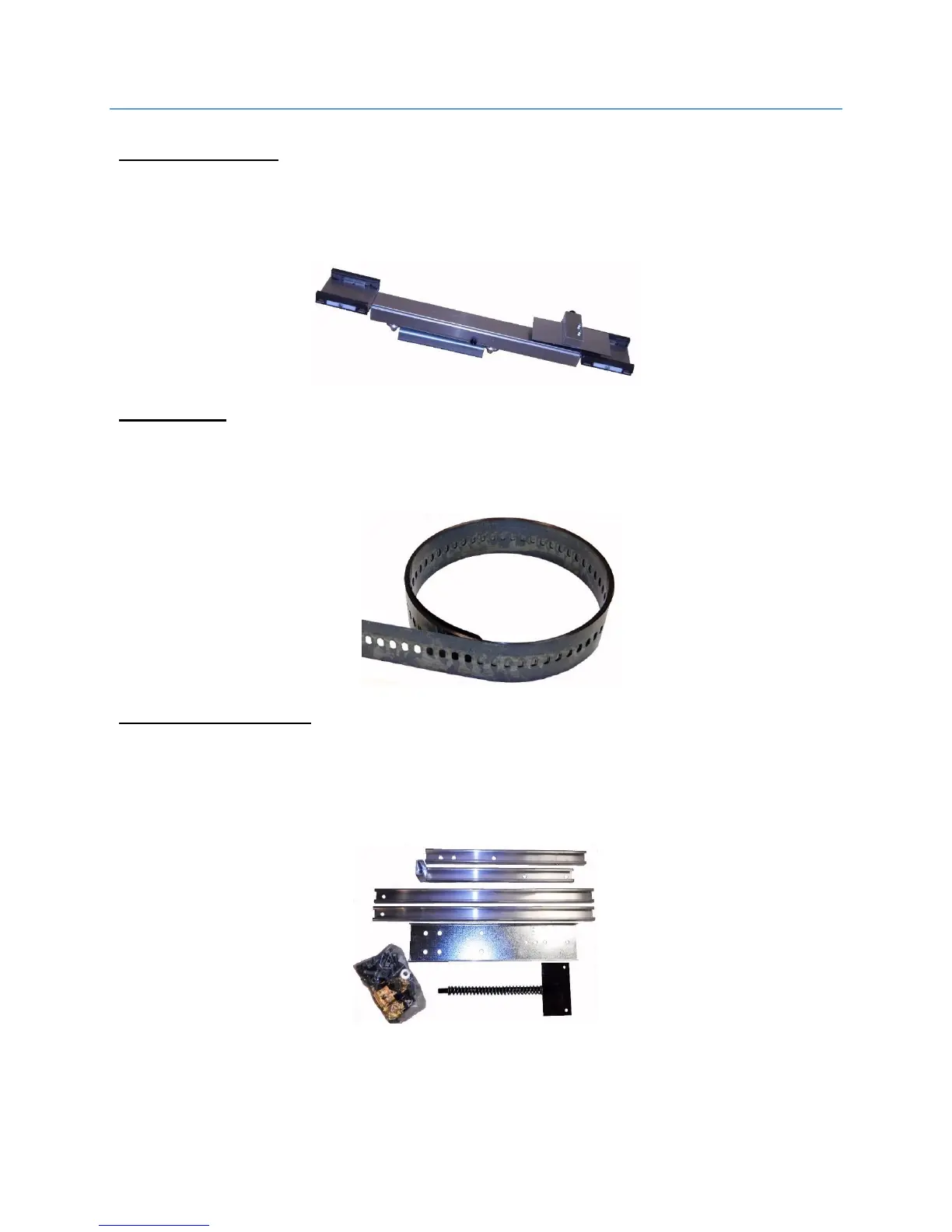

IP8300 Selector - The IP8300 uses a CAT5 cable to connect the reader
head to a breakout board with eight screw terminals. Guide shoes bring
the tape through the reader head where sensors read the magnets.
Steel Tape - The IP8300 system uses a perforated steel tape that runs
the length of the hoistway. Speed and direction is detected as the holes
in the tape interrupt two light beams from the IP8300 selector.
Tape Mounting Kit – The tape mounting kit contains the hardware to
attach the steel tape to the top and bottom of the hoistway. The lower
mounting bracket contains an adjustable spring to tighten the tape’s
tension.
Magnets - Magnets are placed on the tape to mark door zones, UET, and
DET positions.
