121
UET/DET MAGNET PLACEMENT – RAIL
Initial placement can be determined by
using the “Hoistway Switch Position Table”
on Sheet 01: Getting Started of the
drawings or page 106 of this manual.

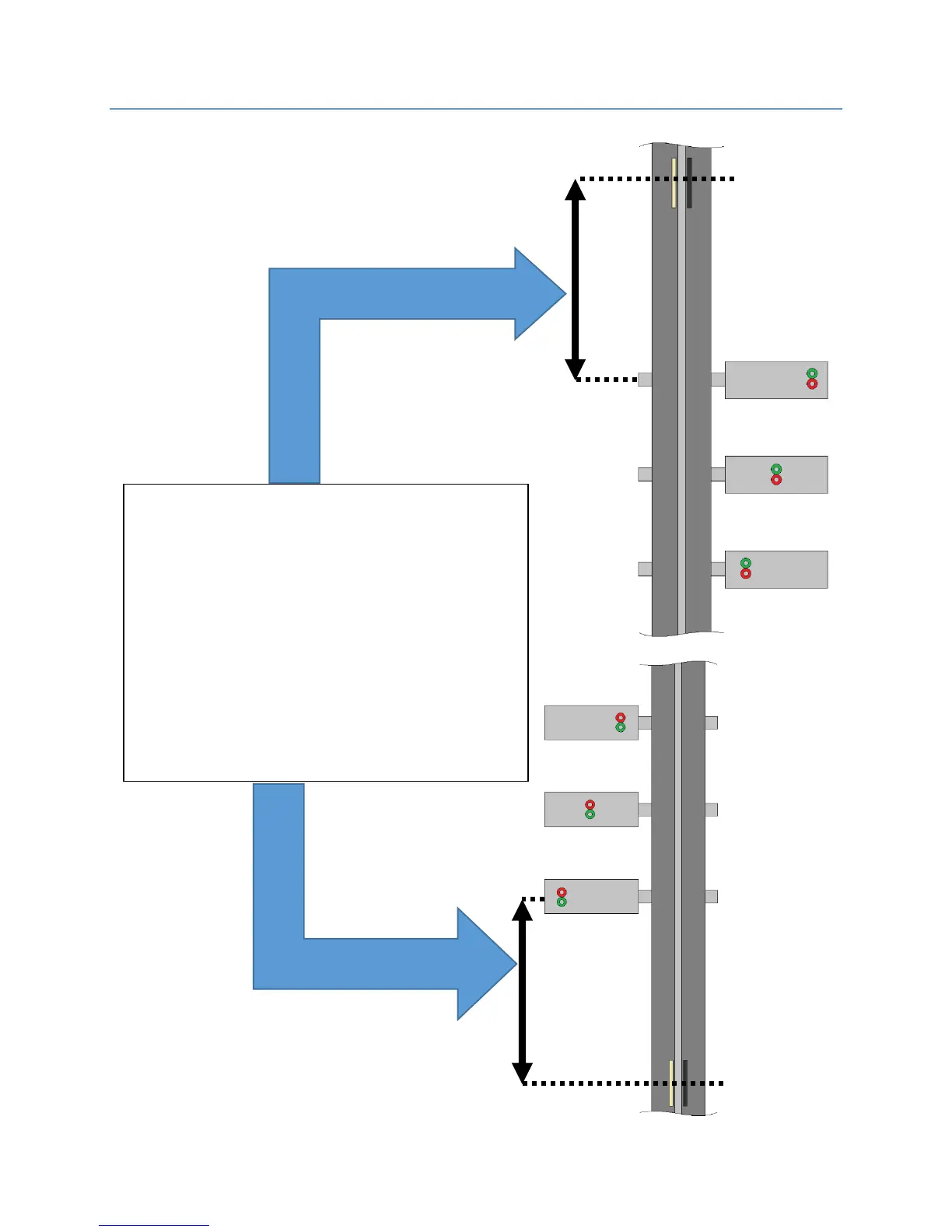

Setting Magnet Distance:
1. Follow the “Slide Distance –
Determining ETS Magnet
Placement” in this manual.
DET (DET)
Measure center of Door Zone Magnet up to
middle of Lifesaver magnets
UET (UET)
Measure center of Door Zone Magnet down to
middle of Lifesaver magnets
