259

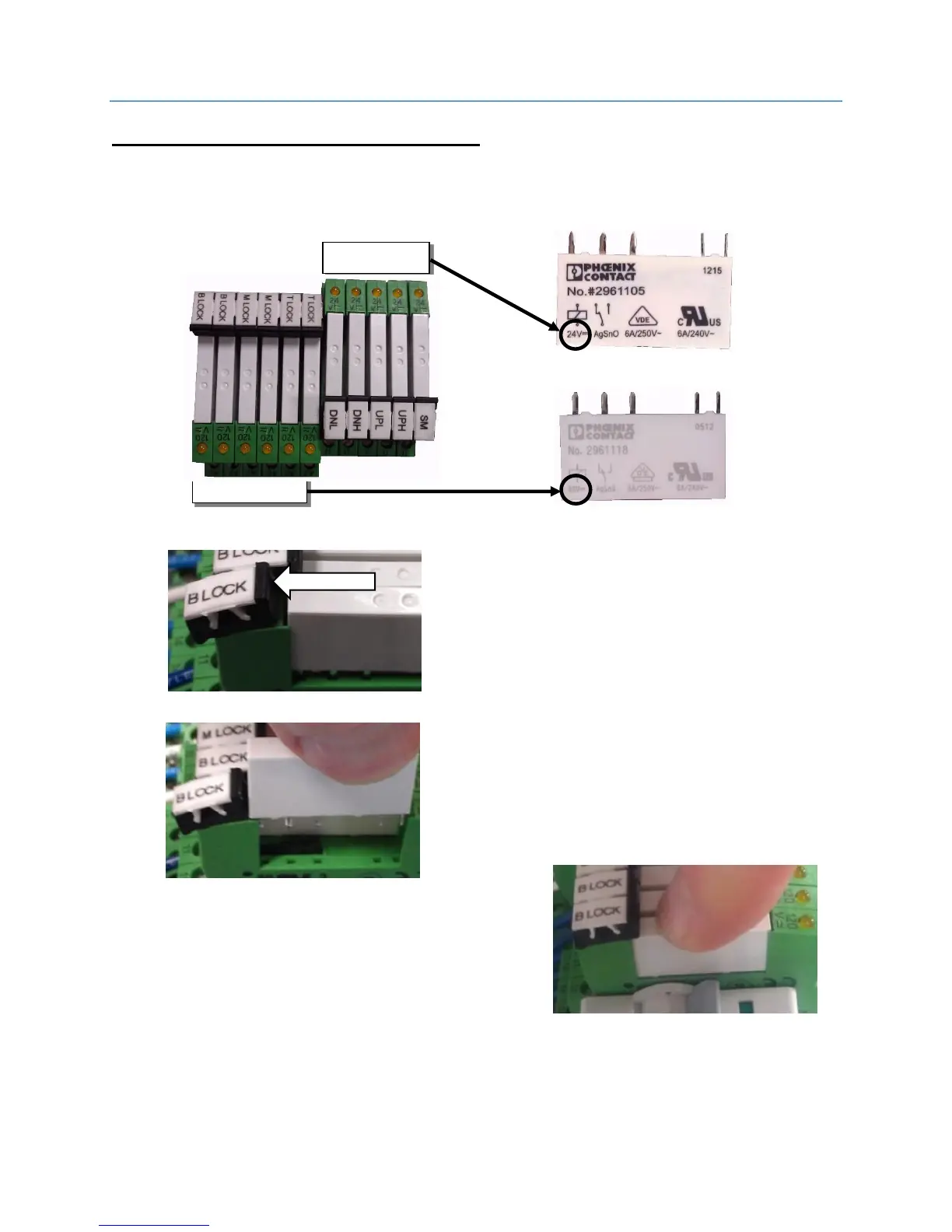

APPENDIX C – REPLACING RELAYS
REPLACING SLIMLINE RELAYS
If replacing relays make sure that the new relay you’re installing is the same voltage as the old
one. Smartrise uses 120vac and 24vdc relays that look similar. See the photos below to
determine the different relays.
1. To inspect a slimline relay push out on the black tab that contains the label.
2. Pull up on the white relay.
3. Re-install the relay the same way making sure
you don’t bend any pins when inserting it into
the base. Pushing down on the relay will snap
the black tab back into the locking position.
** NOTE: If the relay you’re replacing is
burnt out, has been arcing or is missing a pin, you should replace the
whole relay/base assembly. This will eliminate any damage done to the
base from the relay terminals.
