38

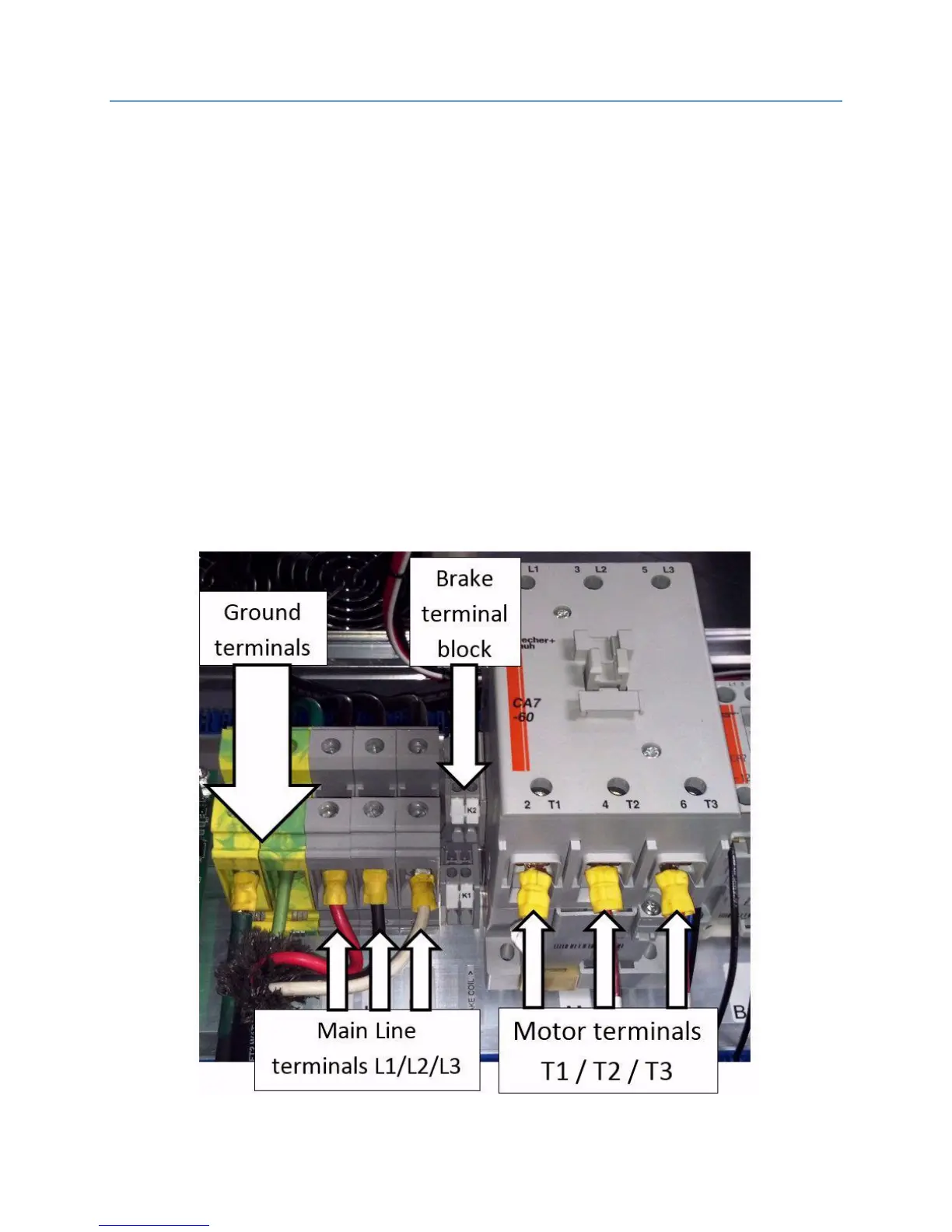

MOTOR & BRAKE WIRING
Main Line Connection
Connect main line power to terminal block L1/L2/L3.
Ground Connection
Connect the ground wire to the yellow/green terminal block next to
L1-L3. Refer to page 4 of the manual for proper grounding
requirements.
Motor Connection
Connect motor leads to the M contactor at terminals T1/T2/T3.
Brake Terminal
Connect the main brake wiring to terminals K1 / K2 (J1 / J2 is optional
for 2
nd
brake) located on the terminal block next to the M contactor.
