MOVFR DOOR OPERATOR – G.A.L. CERTIFIED PHE
To use a G.A.L. certified light curtain on the MOVFR door operator you must follow the 4 steps listed
below:

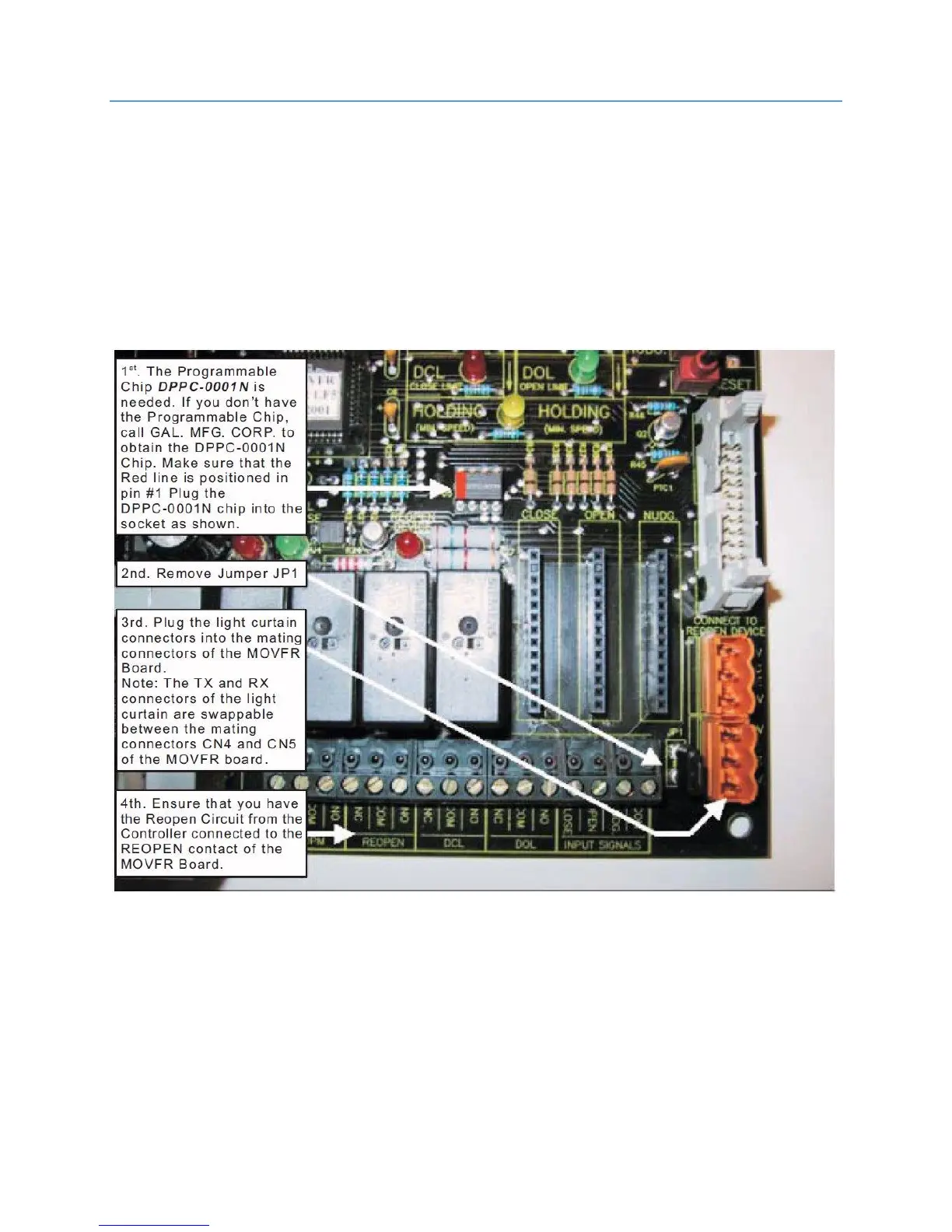

1. Insert the G.A.L. programmable chip in socket U5 (DPPC-0001N) as shown below. If you don’t
have this chip then you must call G.A.L. and get it.
2. Remove jumper JP1 located at the end of the terminal strip.
3. Plug the G.A.L. light curtain plug into the orange socket next to the JP1 jumper.
4. IMPORTANT! Connect the PHE input on the SRU board to the REOPEN terminal on the MOVFR.
Make sure the REOPEN COM is connected to C24.
